Kryptex Golf Carts

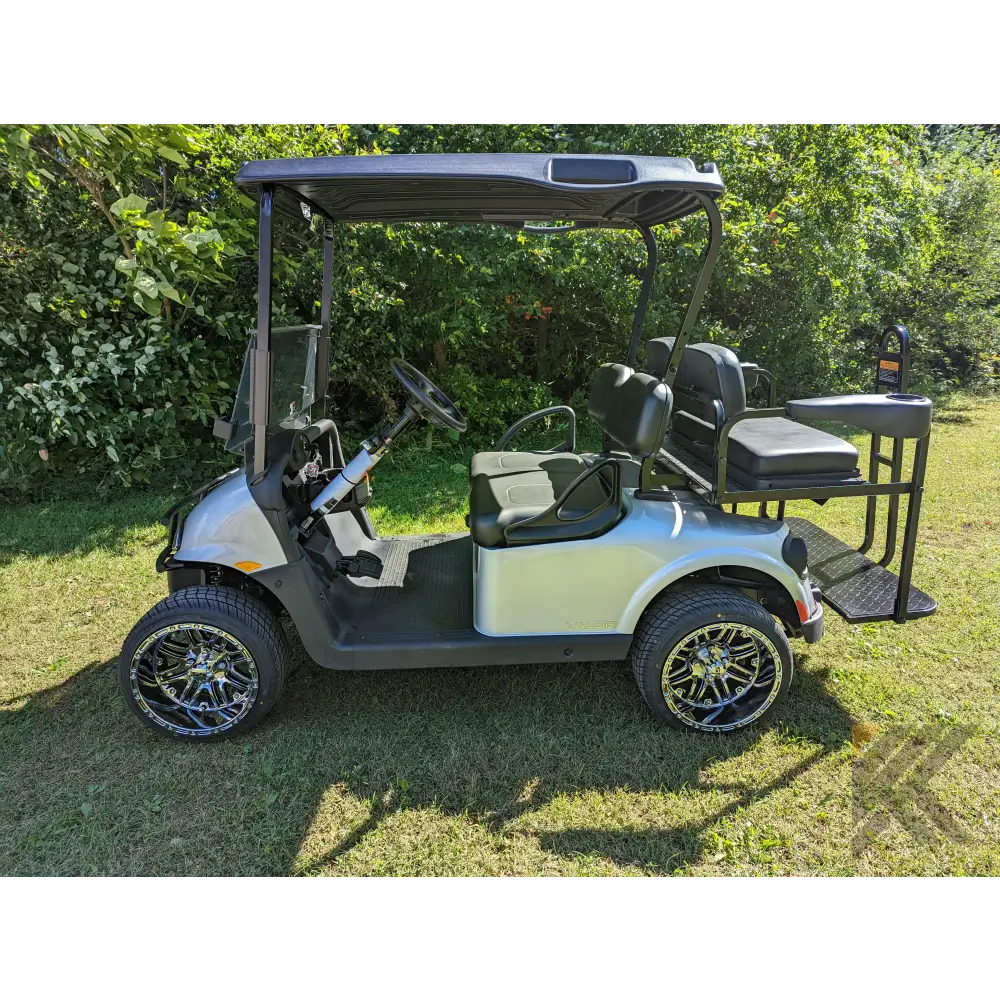

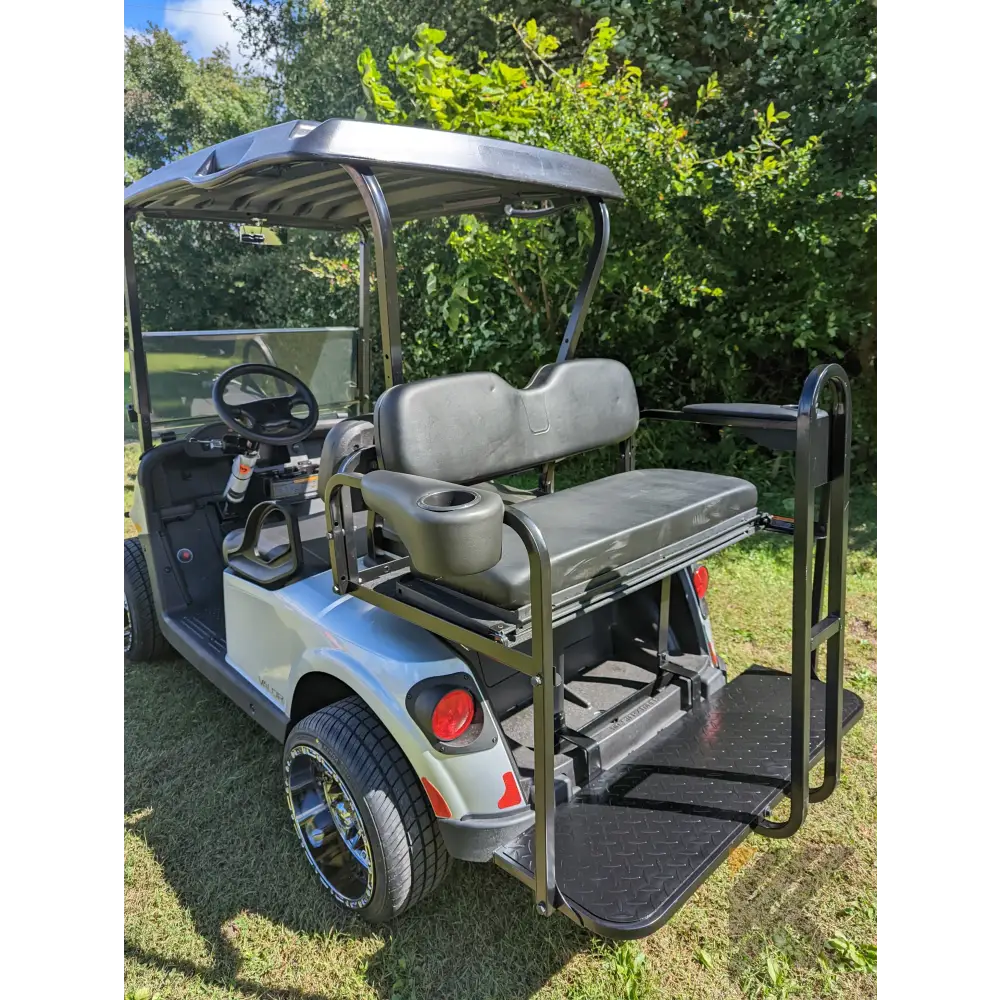

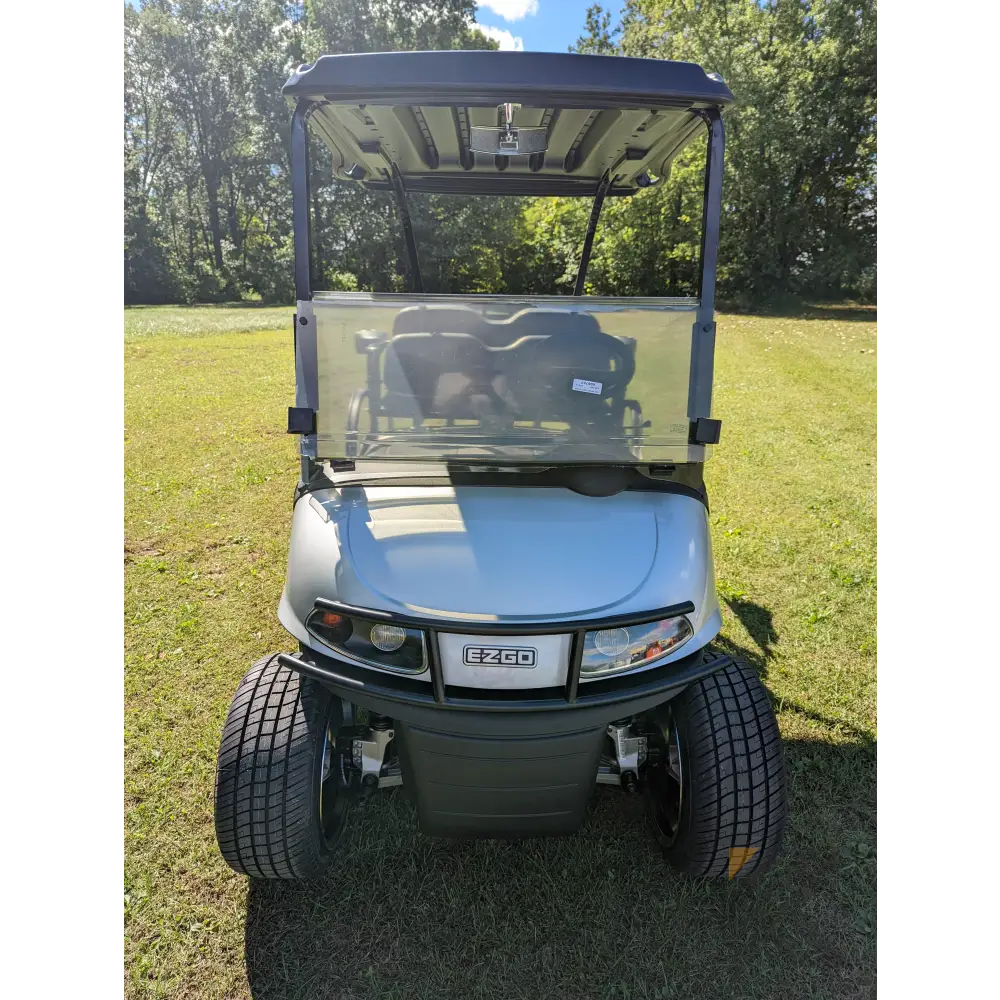

E-Z-GO Valor - Platinum

E-Z-GO Valor - Platinum

Regular price $7,100.00 USD
Regular price $10,000.00 USD Sale price $7,100.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
Color

Make your everyday golf game a pleasure with the E-Z-GO Valor - Platinum. Equipped with a 4-Point Adjustable Suspension System, the Valor offers a comfortable and stable driving experience, with an adjustable digital gauge and multi-functional LCD media center for easy access to all your controls. With a powerful 48V AC motor, you'll have more than enough power for a thrilling ride.

E-Z-GO Valor Custom Platinum

  • Tinted Windshield with Mirror
  • USB Port
  • Upgraded Backseat Armrest with Cup Holders
  • 2 Glove Boxes
  • Grab Bar
  • Brush Guard
  • LED Lights with Turn Signals
  • 14 Inch Chrome Mega Star Wheels
  • Year 2023
  • 18 MPH

Specifications

Full dimensions: 9' long, 52" wide , 78" high

Max load capacity:1200LBS

Motor: 4000watt

Battery: 6 pcs 8v battery , lithium battery available for upgrade

Charger: on board smart charger

Charging time: 5 hours

Brake: brake and parking brake

Frame and chassis: Steel with hydraulic dipping

Tire size: 23x10-14


ELECTRICAL

Battery

One, 12 V maintenance-free


ENGINE

Engine

EX1, 4 cycle, Single cylinder, OHC

Horsepower

11.5 hp (8.6 kW) J1995 standard

Displacement

150 cc (9.15 cu. in.)

Carburetion

Closed-loop electronic fuel injection

Starter

Pedal




MEASUREMENTS

Length

Overall - 94.5 in. (240 cm)

Height

Overall (without roof) - 47.5 in. (121 cm)

Overall (with roof) - 70.0 in. (178 cm)

Width

Overall - 47.0 in. (119 cm)

Weight

Dry - 676 lb. (307 kg)

Curb - 692 lb. (314 kg)

Wheelbase

65.7 in. (167 cm)

Front wheel track - 35.5 in. (90 cm)

Rear wheel track - 38.0 in. (97 cm)

Ground Clearance

At differential - 4.0 in. (10 cm)


OPERATIONAL

Brakes

Service - Rear wheel mechanical self-adjusting drums

Parking - Self-compensating, single point engagement

Suspension

Front - Independent A-arm coil-over shock

Rear - Mono-leaf spring with hydraulic shocks

Tires

18 x 8.50-8 (4-ply rated)

Seating

Capacity - 2 passenger

Load Capacity

Vehicle - 500 - 800 lb. (227 - 360 kg)

Turning Radius

Outside clearance circle - 19.0 ft. (5.8 m)

Steering

Double-ended rack and pinion

Speed

Level ground - 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
