The 2023 E-Z-GO S4 - Slate is designed with efficient performance and comfortable ride in mind. Powered by a whisper quiet, maintenance-free electric motor, the S4 is ideal for urban golfing, with a top speed of up to 18.6 mph and a range of up to 15 miles on a single battery charge. Experience a superior driving experience with its independent suspension system for an improved ride quality.

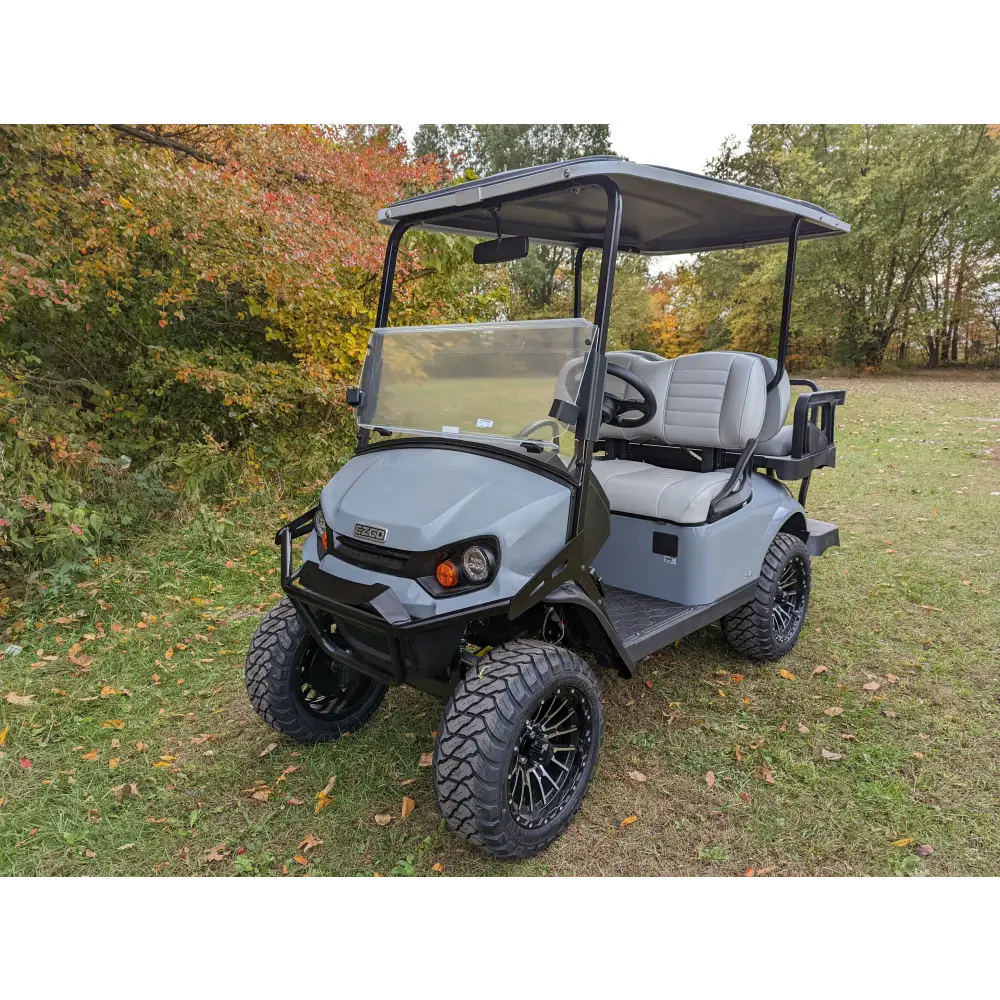

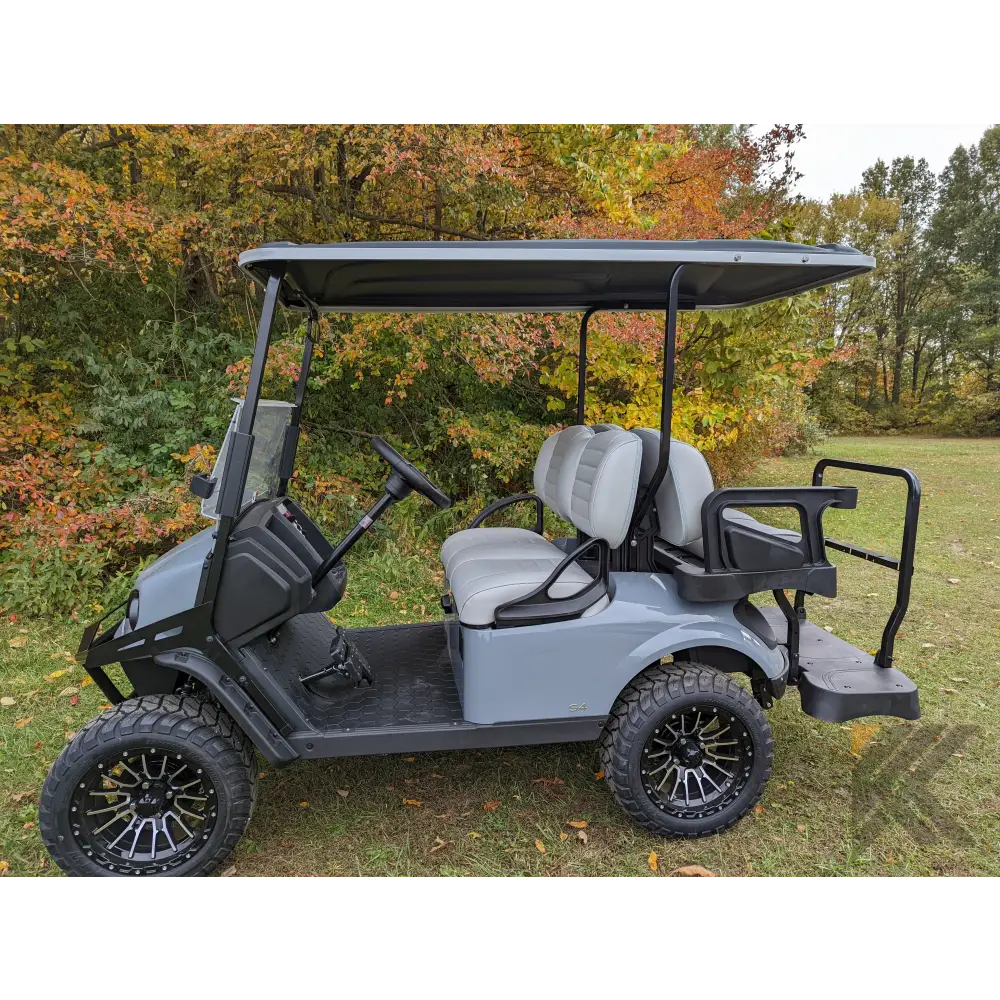

2023 E-Z-GO S4 Slate

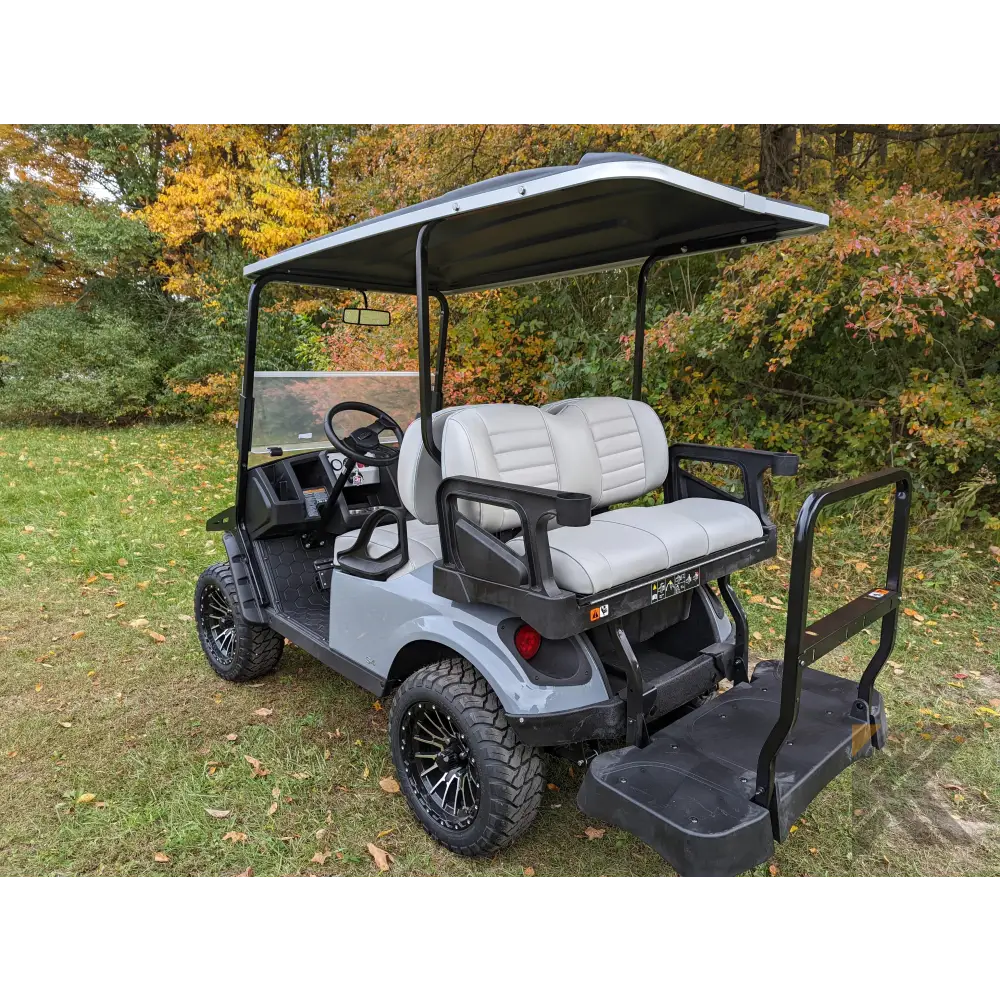

• Convertible Rear Seat with Durable Composite Frame and Built-In Storage
• LED Headlights, Taillights and Brake Lights

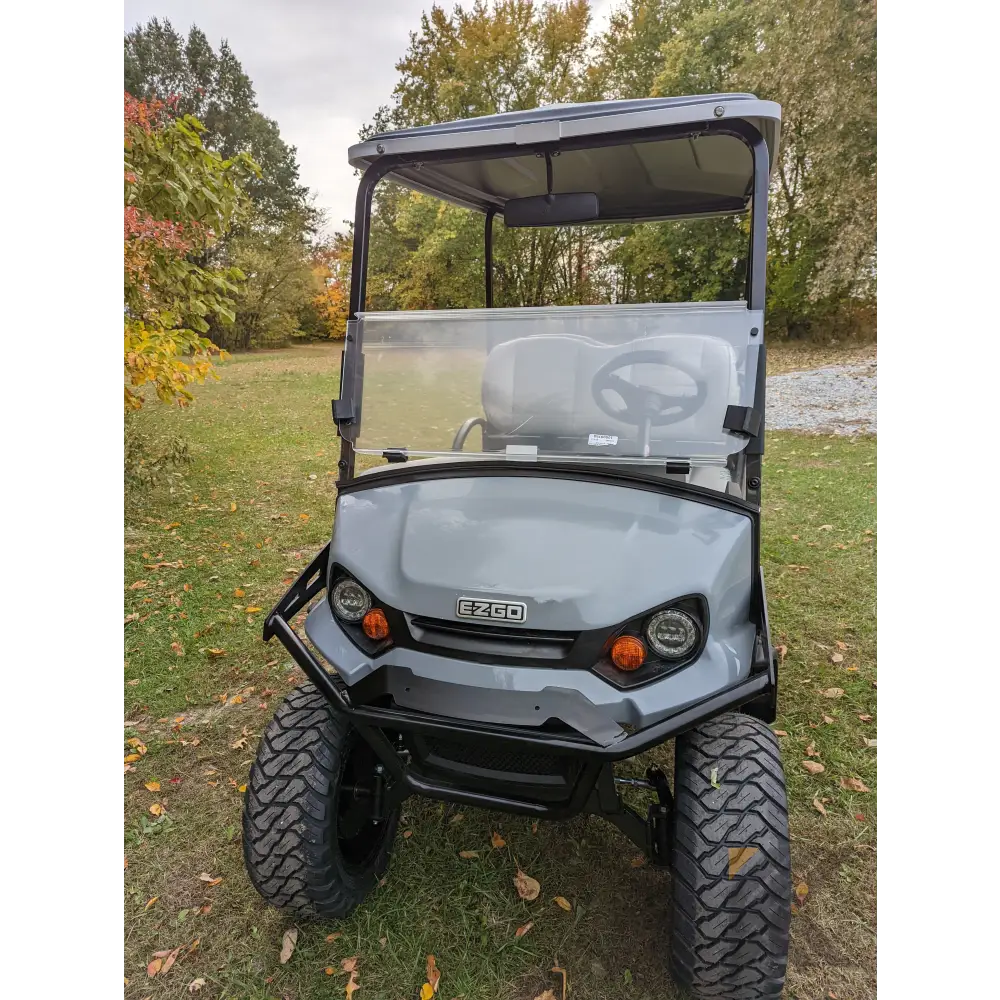

• Fold-Down Windshield
• Premium Steering Wheel
• Dual USB Ports
• Kruizer Tires on SPDR Wheels
• Convex Mirror
• Turn Signal with Horn
• Fender Flares
Specifications
Full dimensions: 9' long, 52" wide , 78" high
Max load capacity:1200LBS
Motor: 4000watt
Battery: 6 pcs 8v battery , lithium battery available for upgrade
Charger: on board smart charger
Charging time: 5 hours
Brake: brake and parking brake
Frame and chassis: Steel with hydraulic dipping
Tire size: 23x10-14
ELECTRICAL
Battery
One, 12 V maintenance-free
ENGINE
Engine
EX1, 4 cycle, Single cylinder, OHC
Horsepower
11.5 hp (8.6 kW) J1995 standard
Displacement
150 cc (9.15 cu. in.)
Carburetor
Closed-loop electronic fuel injection
Starter
Pedal
MEASUREMENTS
Length
Overall - 94.5 in. (240 cm)
Height
Overall (without roof) - 47.5 in. (121 cm)
Overall (with roof) - 70.0 in. (178 cm)
Width
Overall - 47.0 in. (119 cm)
Weight
Dry - 676 lb. (307 kg)
Curb - 692 lb. (314 kg)
Wheelbase
65.7 in. (167 cm)
Front wheel track - 35.5 in. (90 cm)
Rear wheel track - 38.0 in. (97 cm)
Ground Clearance
At differential - 4.0 in. (10 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drums
Parking - Self-compensating, single point engagement
Suspension
Front - Independent A-arm coil-over shock
Rear - Mono-leaf spring with hydraulic shocks
Tires
18 x 8.50-8 (4-ply rated)
Seating
Capacity - 2 passenger
Load Capacity
Vehicle - 500 - 800 lb. (227 - 360 kg)
Turning Radius
Outside clearance circle - 19.0 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
Level ground - 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
