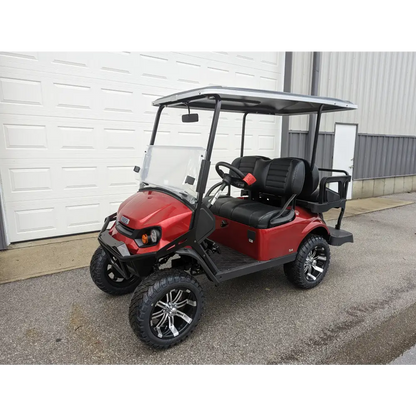

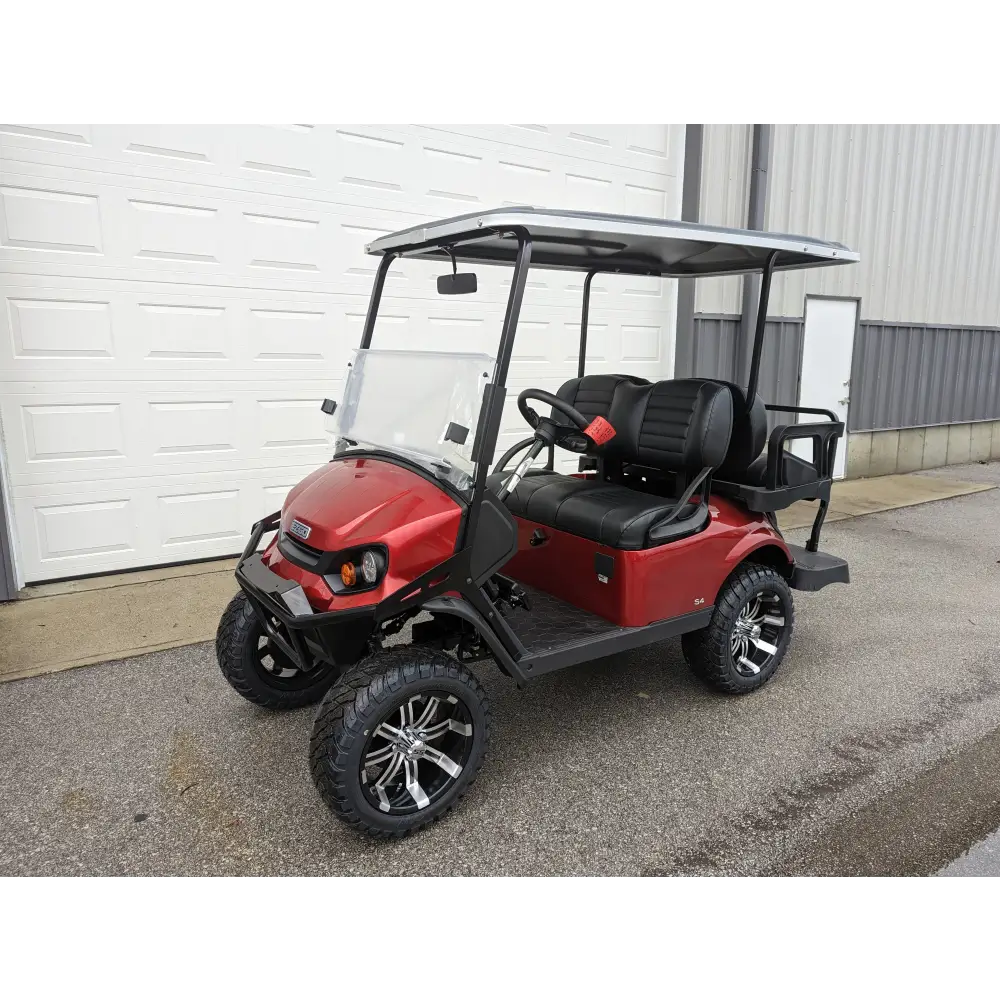

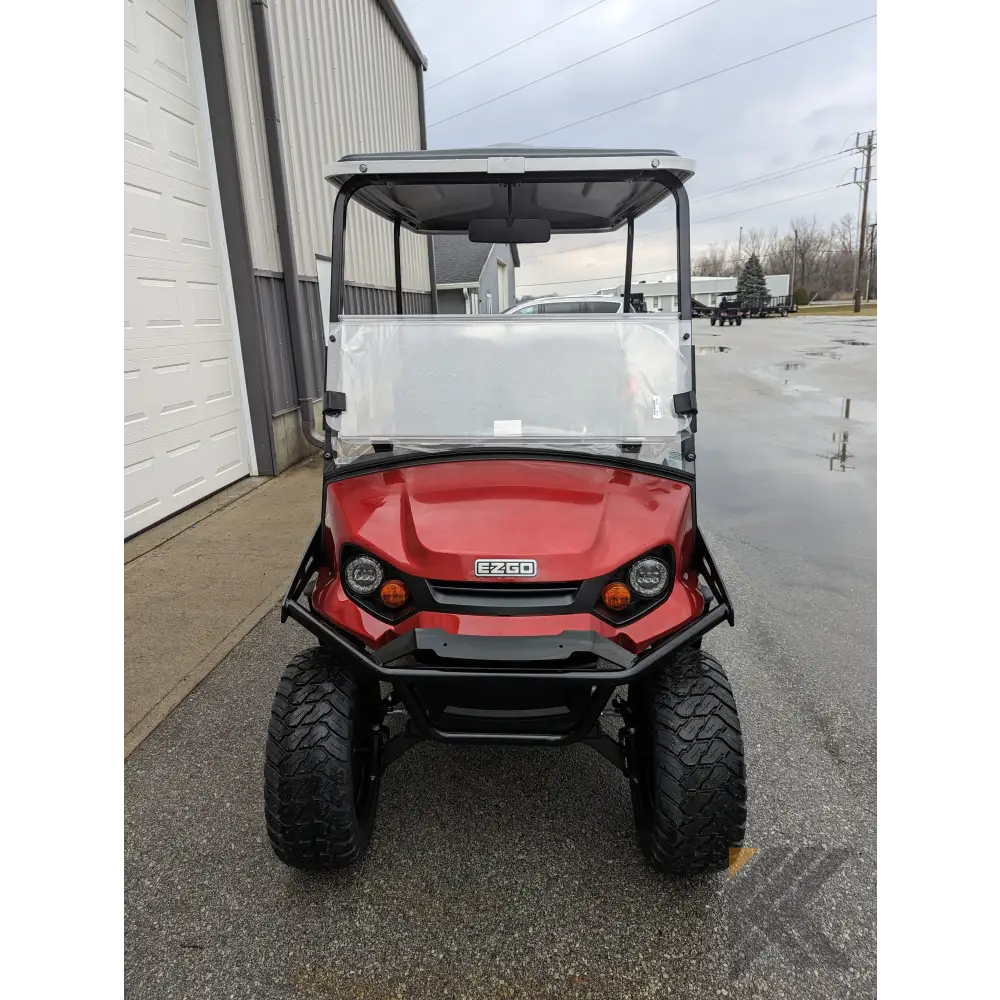

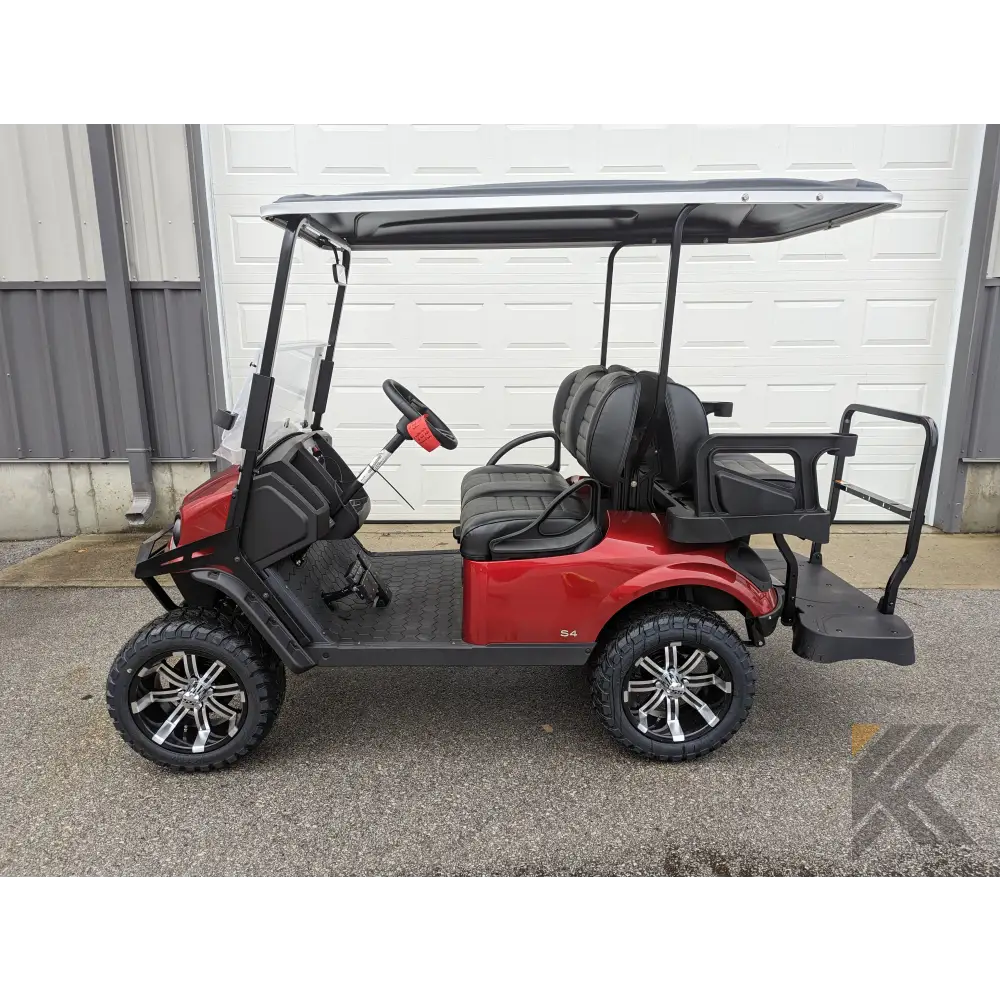

This year's E-Z GO S4 comes in a striking Inferno Red. It is the latest offering from the environmentally responsible E-Z GO brand, which is known for its low-emission design and exceptional power-to-weight ratio. Prepare to experience unbeatable performance and a smooth ride on the 2023 S4. 25 MPM
FEATURES
DESCRIPTION
2023 E-Z GO S4 4 PASSENGER
- Color Inferno Red
- BLACK SEATS
- LIFTED
- STREET LEGAL
- EXTENDED TOP
- SEAT BELTS
- LIGHT PACKAGE
- HORN
- TURN SIGNALS
- HALOGEN HEADLIGHTS
- REAR VIEW MIRRORS

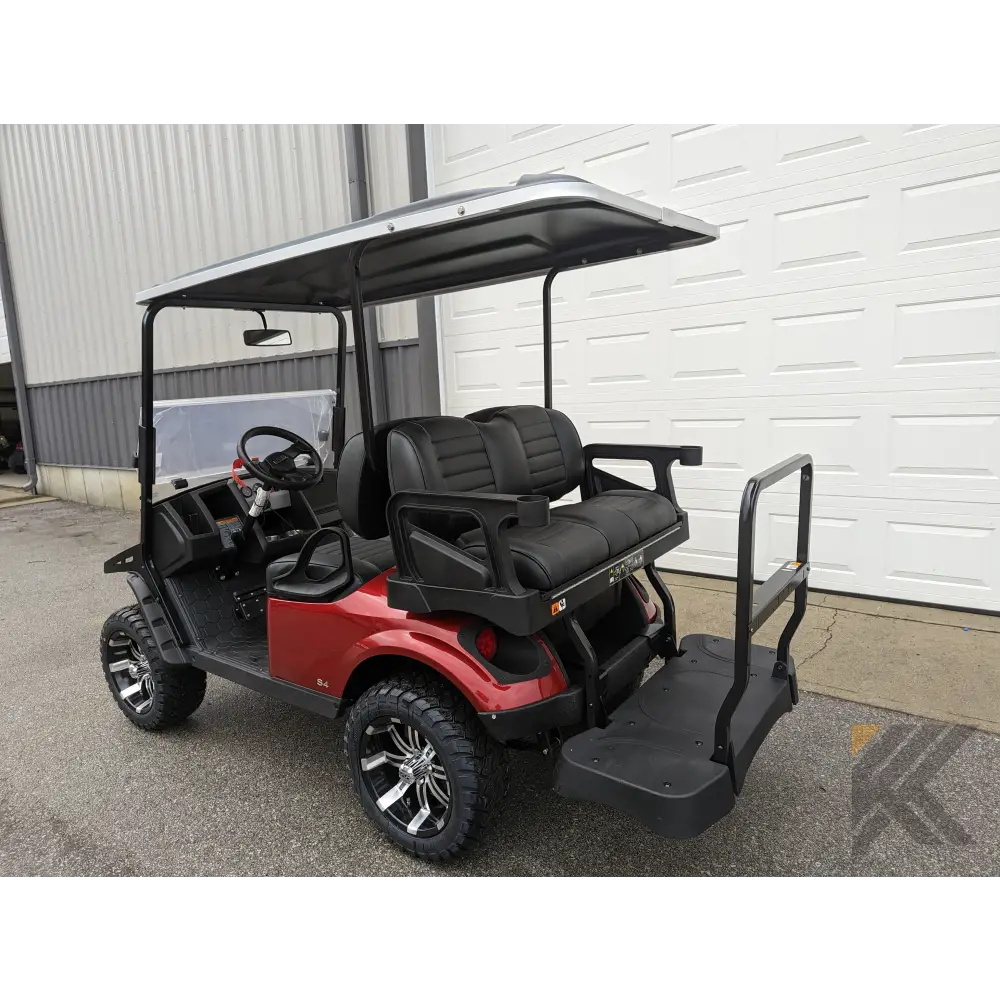

- Convertible rear seat with durable composite frame and built-In storage
-
25 MPH
SPECIFICATIONS
Full dimensions: 9' long, 52" wide , 78" high
Max load capacity: 1200LBS
Battery: 6 pcs 8v battery, Lithium battery available for upgrade
Charger: on board smart charger
Charging time: 5 hours
Brake: brake and parking brake
Fold-Down Windshield
Premium Steering Wheel
Tire size: 23x10-14
MEASUREMENTS
Length
Overall - 94.5 in. (240 cm)
Height
Overall (without roof) - 47.5 in. (121 cm)
Overall (with roof) - 70.0 in. (178 cm)
Width
Overall - 47.0 in. (119 cm)
Weight
Dry - 676 lb. (307 kg)
Curb - 692 lb. (314 kg)
Wheelbase
65.7 in. (167 cm)
Front wheel track - 35.5 in. (90 cm)
Rear wheel track - 38.0 in. (97 cm)
Ground Clearance
At differential - 4.0 in. (10 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drums
Parking - Self-compensating, single point engagement
Suspension
Front - Independent A-arm coil-over shock
Rear - Mono-leaf spring with hydraulic shocks
Tires
18 x 8.50-8 (4-ply rated)
Seating
Capacity - 4 passengers
Load Capacity
Vehicle - 500 - 800 lb. (227 - 360 kg)
Turning Radius
Outside clearance circle - 19.0 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
Level ground - 25 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
