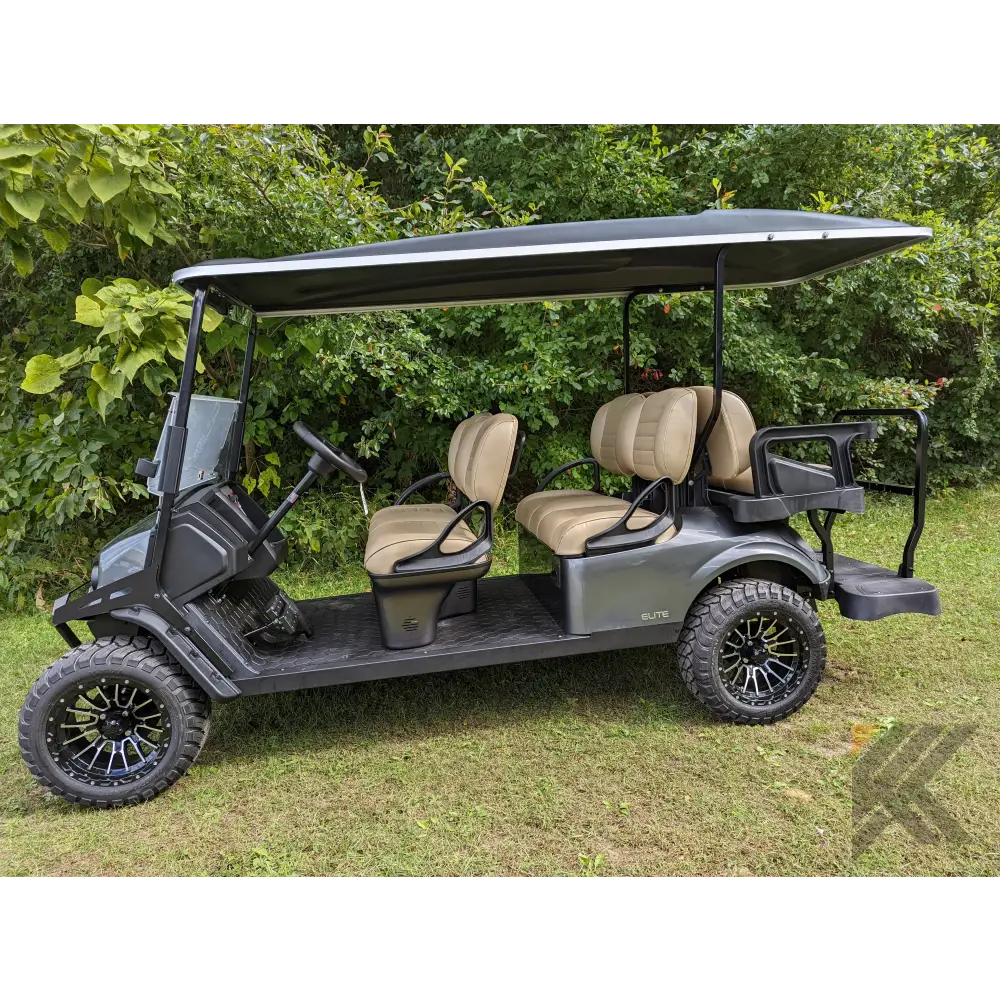

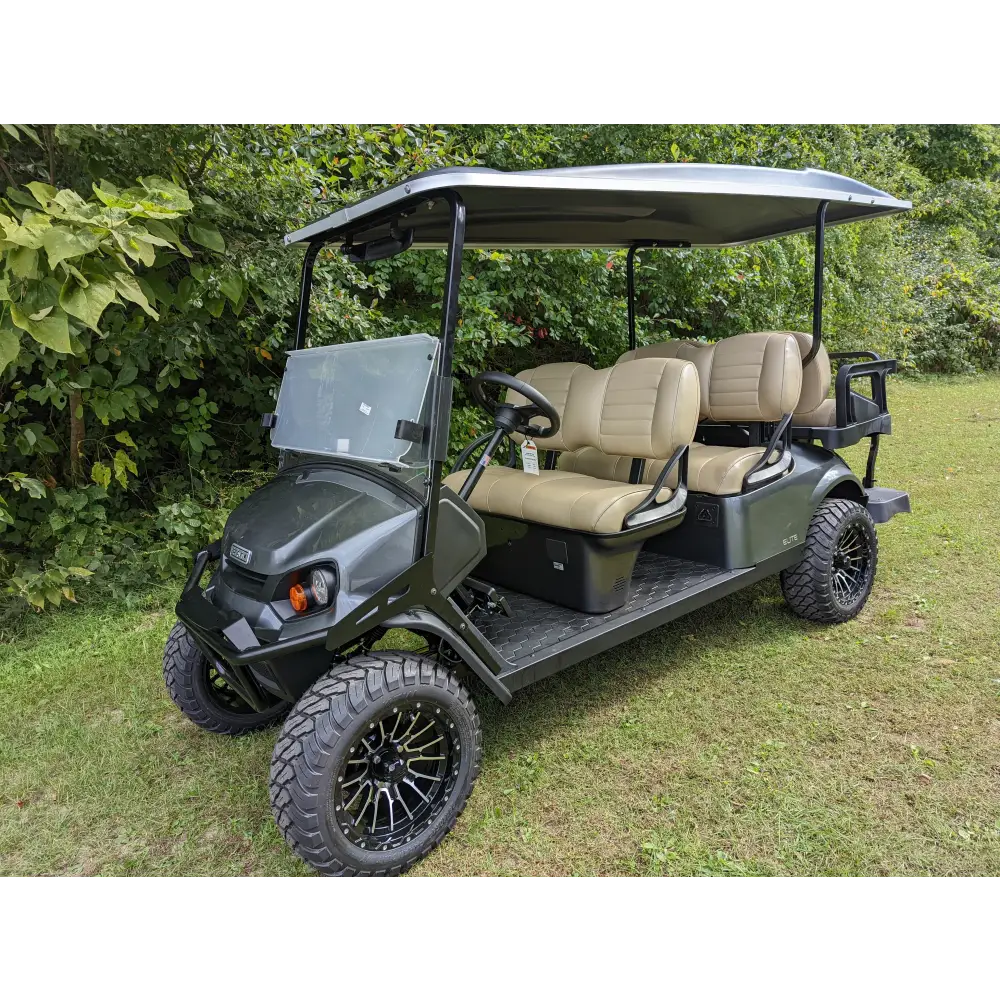

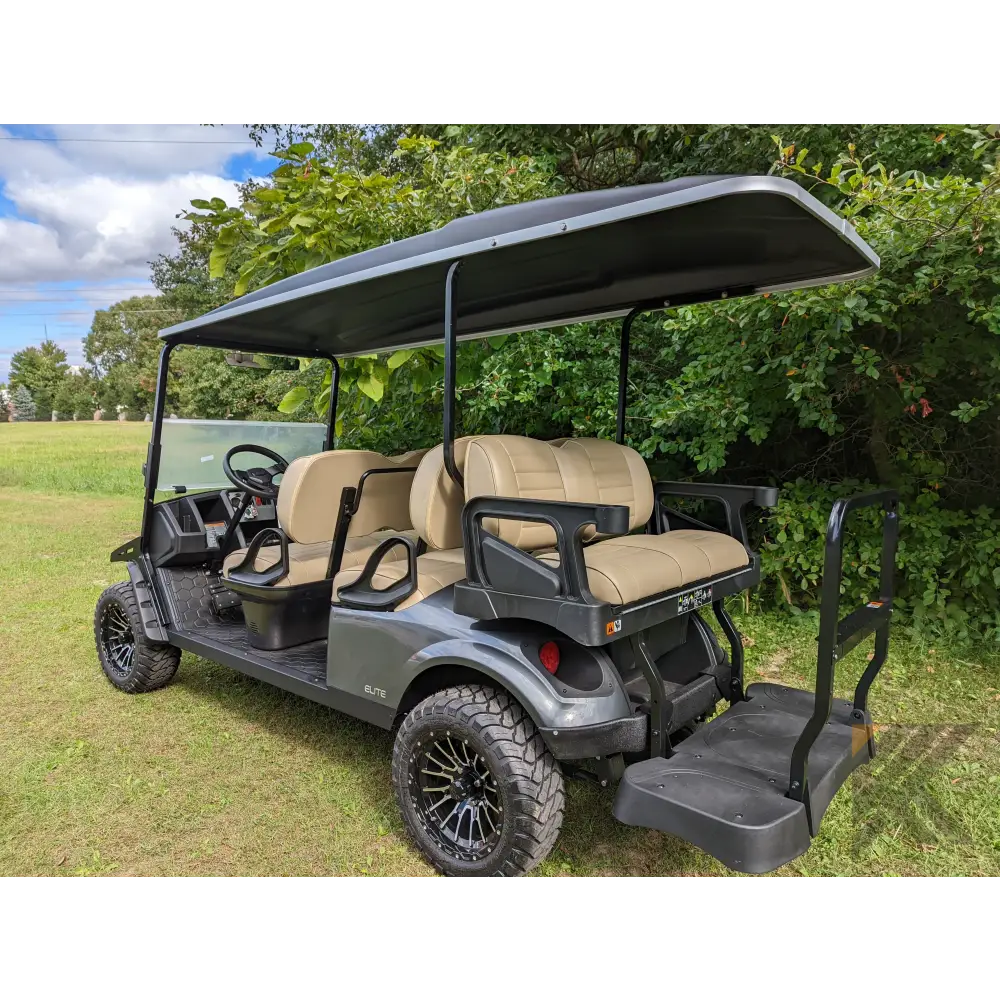

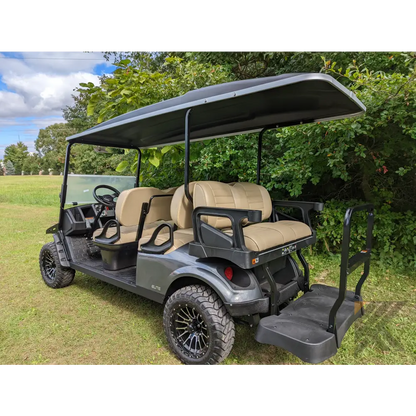

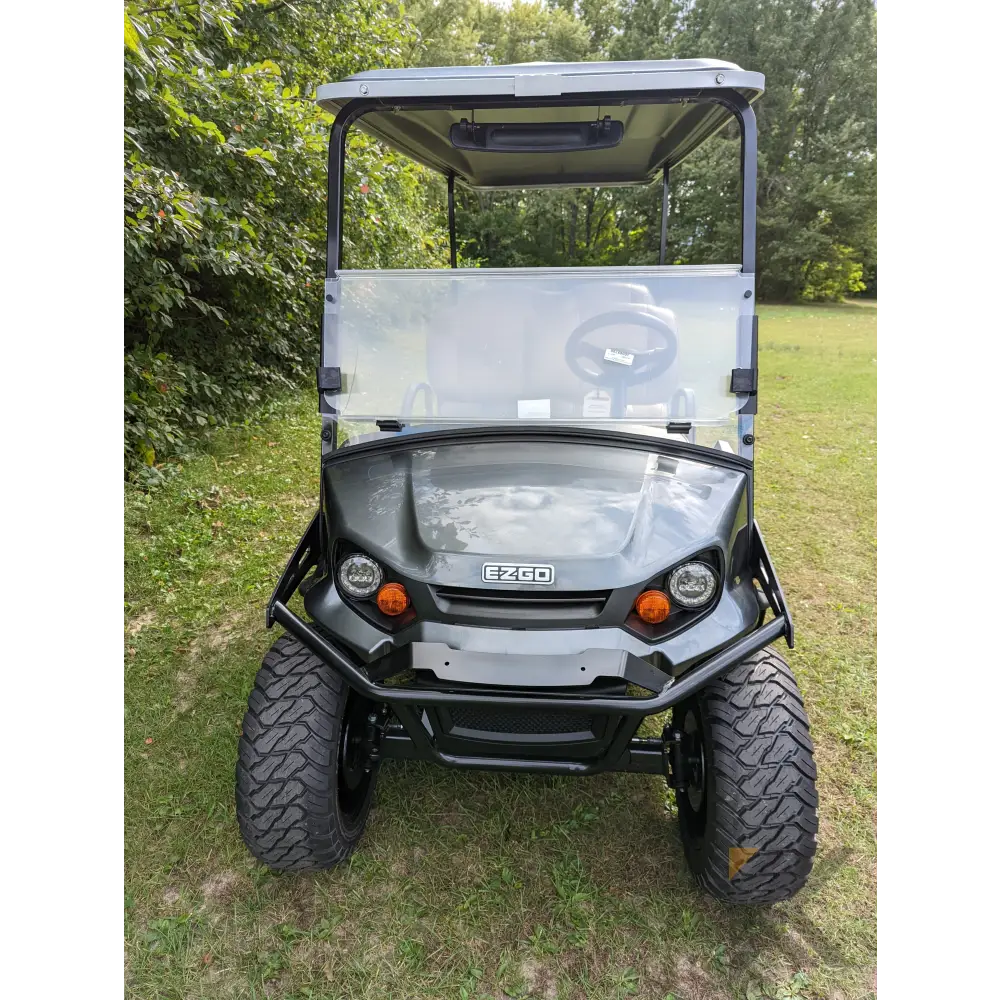

The 2023 E-Z-GO L6 offers a reliable golf cart experience with its durable metallic charcoal finish. It's designed to be comfortable and easy to handle with superior suspension, making every ride smooth. Get ready to tackle the course in style.
FEATURES
DESCRIPTION
2023 E-Z-GO L6 6 PASSENGER
- Color Platinum
- BLACK SEATS
- LIFTED
- STREET LEGAL
- EXTENDED TOP
- SEAT BELTS
- LIGHT PACKAGE
- HORN
- TURN SIGNALS
- HALOGEN HEADLIGHTS
- REAR VIEW MIRRORS
- Convertible rear seat with durable composite frame and built-In storage
-
25 MPH
SPECIFICATIONS
Full dimensions: 9' long, 52" wide , 78" high
Max load capacity: 1200LBS
Battery: 6 pcs 8v battery, Lithium battery available for upgrade
Charger: on board smart charger
Charging time: 5 hours
Brake: brake and parking brake
Fold-Down Windshield
Premium Steering Wheel
Tire size: 23x10-14
MEASUREMENTS
Length
Overall - 94.5 in. (240 cm)
Height
Overall (without roof) - 47.5 in. (121 cm)
Overall (with roof) - 70.0 in. (178 cm)
Width
Overall - 47.0 in. (119 cm)
Weight
Dry - 676 lb. (307 kg)
Curb - 692 lb. (314 kg)
Wheelbase
65.7 in. (167 cm)
Front wheel track - 35.5 in. (90 cm)
Rear wheel track - 38.0 in. (97 cm)
Ground Clearance
At differential - 4.0 in. (10 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drums
Parking - Self-compensating, single point engagement
Suspension
Front - Independent A-arm coil-over shock
Rear - Mono-leaf spring with hydraulic shocks
Tires
18 x 8.50-8 (4-ply rated)
Seating
Capacity - 6 passengers
Load Capacity
Vehicle - 500 - 800 lb. (227 - 360 kg)
Turning Radius
Outside clearance circle - 19.0 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
Level ground - 25 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
