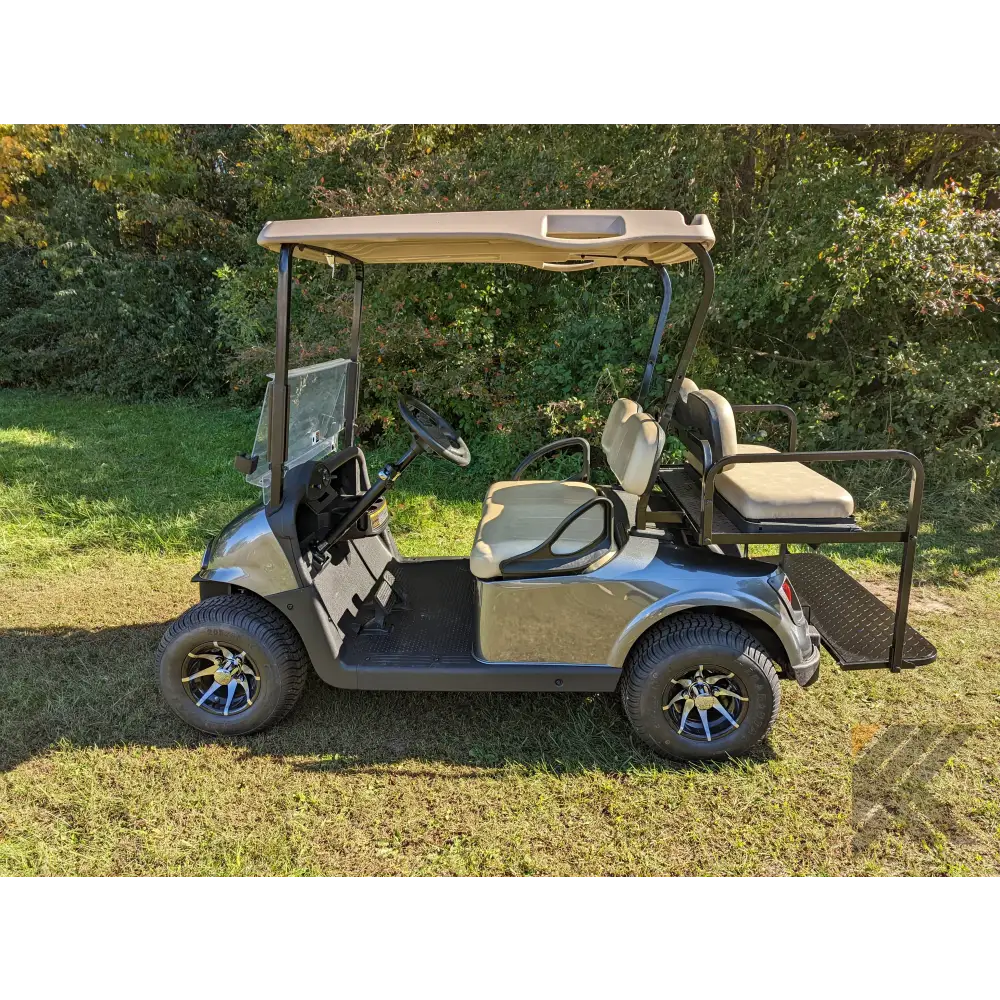

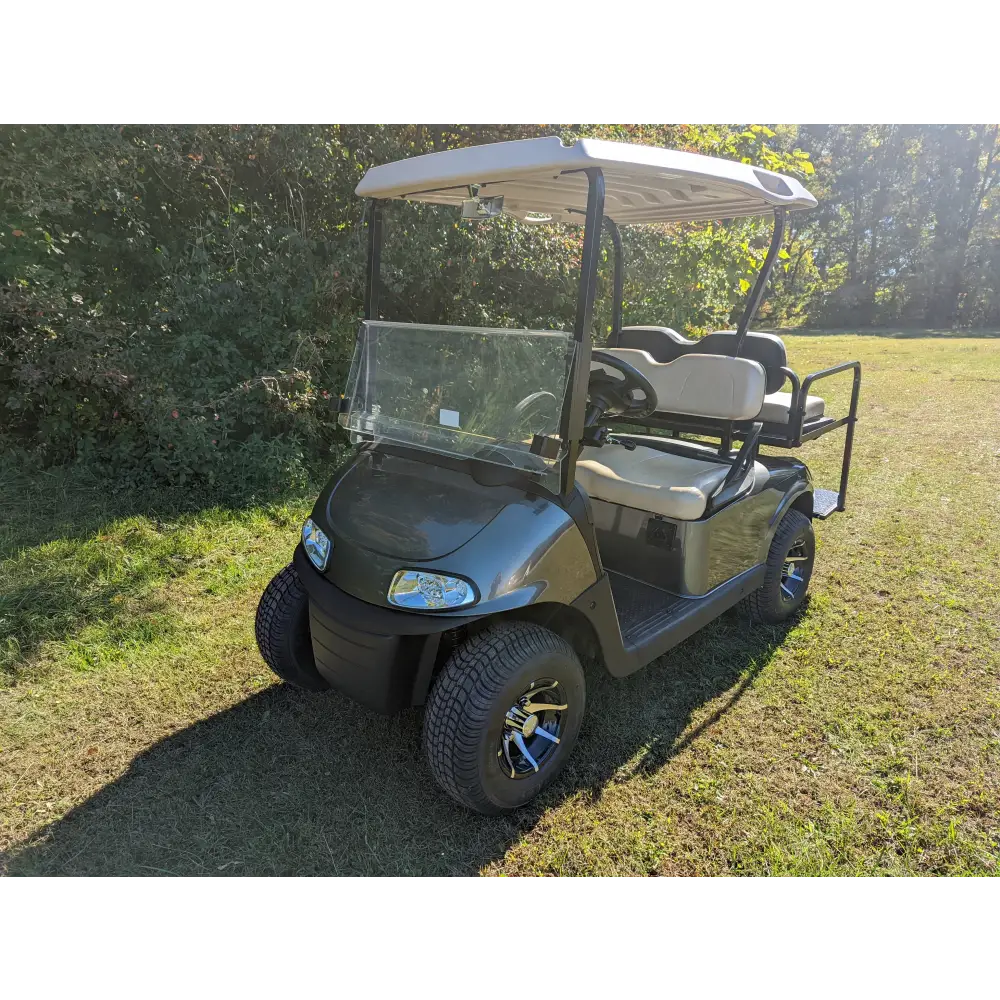

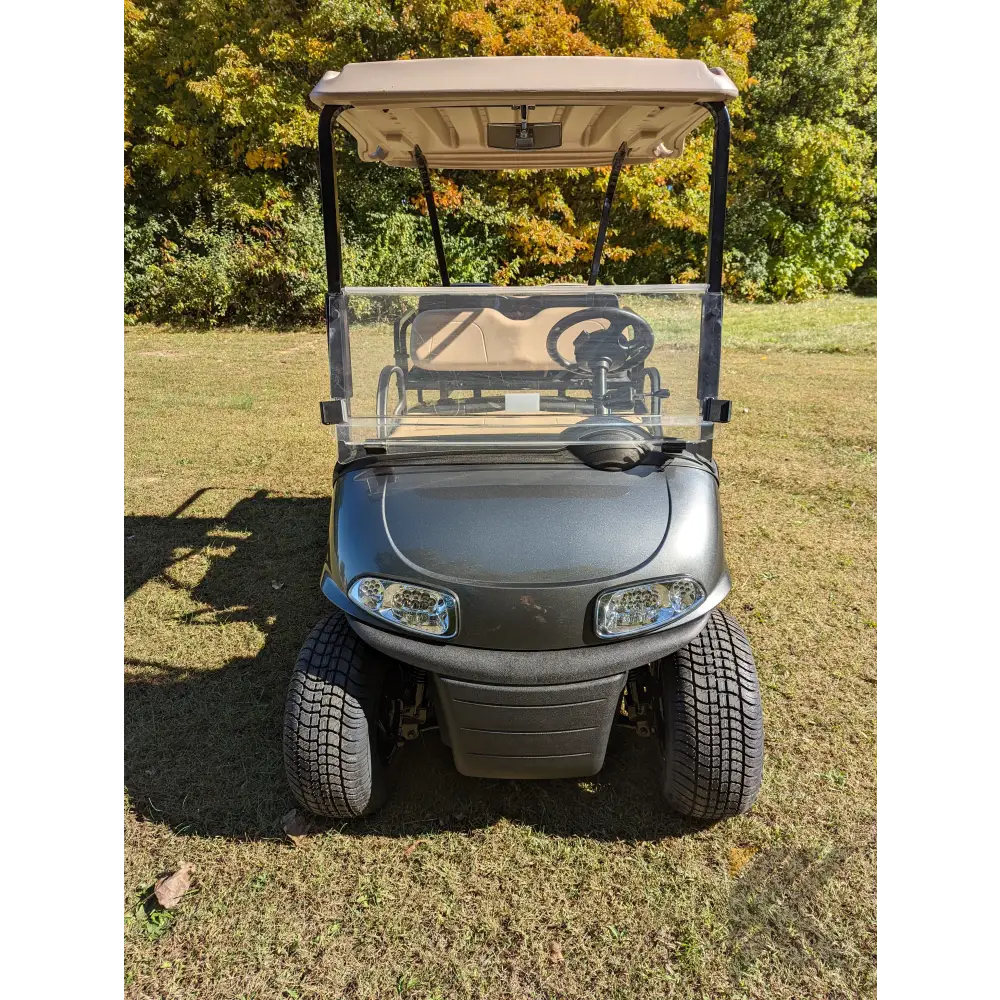

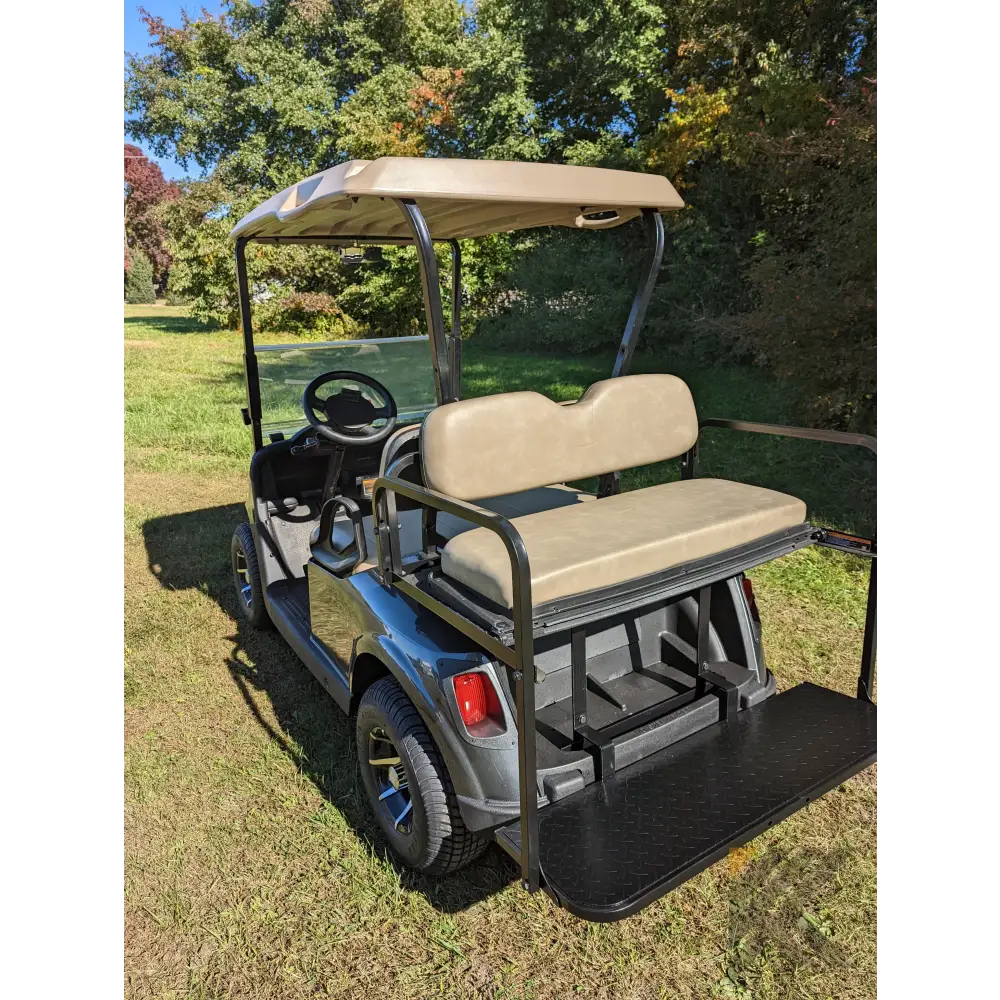

Experience a level of luxury and performance with the 2018 E-Z-GO RXV ELITE Metallic Charcoal. This model features superior suspension, advanced powertrain and a sleek, stylish design to bring you the best in golf car travel. Enjoy improved torque and speed with the 8.0 peak horsepower motor and the ultimate in comfort with the independent front and rear suspension system. Make a statement while hitting the links!
- LED Lights with Turn Signals
- Windshield with Mirror
- 10 Inch Tires
- 19 MPH
Specifications
Full dimensions: 9' long, 52" wide , 78" high
Max load capacity:1200LBS
Motor: 4000watt
Battery: 6 pcs 8v battery , lithium battery available for upgrade
Charger: on board smart charger
Charging time: 5 hours
Brake: brake and parking brake
Frame and chassis: Steel with hydraulic dipping
Tire size: 23x10-14
ELECTRICAL
Battery
One, 12 V maintenance-free
ENGINE
Engine
EX1, 4 cycle, Single cylinder, OHC
Horsepower
11.5 hp (8.6 kW) J1995 standard
Displacement
150 cc (9.15 cu. in.)
Carburetion
Closed-loop electronic fuel injection
Starter
Pedal
MEASUREMENTS
Length
Overall - 94.5 in. (240 cm)
Height
Overall (without roof) - 47.5 in. (121 cm)
Overall (with roof) - 70.0 in. (178 cm)
Width
Overall - 47.0 in. (119 cm)
Weight
Dry - 676 lb. (307 kg)
Curb - 692 lb. (314 kg)
Wheelbase
65.7 in. (167 cm)
Front wheel track - 35.5 in. (90 cm)
Rear wheel track - 38.0 in. (97 cm)
Ground Clearance
At differential - 4.0 in. (10 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drums
Parking - Self-compensating, single point engagement
Suspension
Front - Independent A-arm coil-over shock
Rear - Mono-leaf spring with hydraulic shocks
Tires
18 x 8.50-8 (4-ply rated)
Seating
Capacity - 2 passenger
Load Capacity
Vehicle - 500 - 800 lb. (227 - 360 kg)
Turning Radius
Outside clearance circle - 19.0 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
Level ground - 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph)
