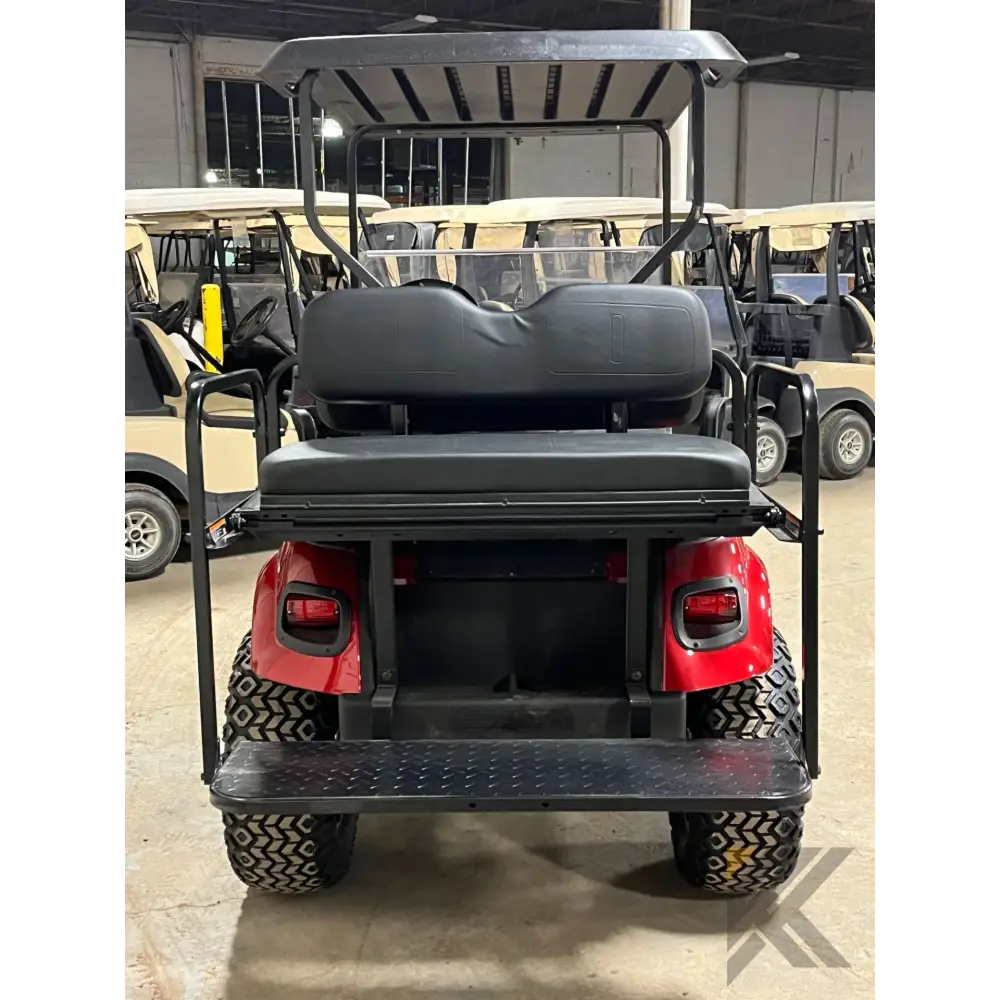

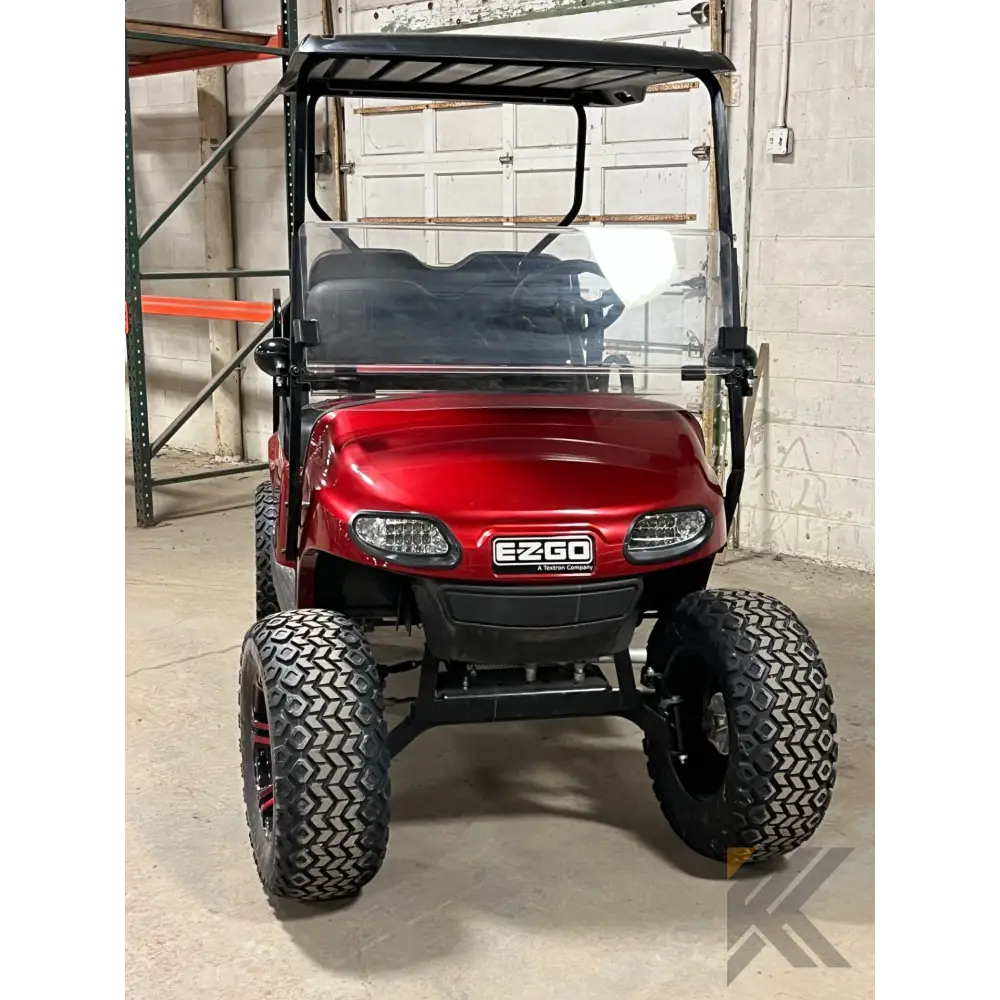

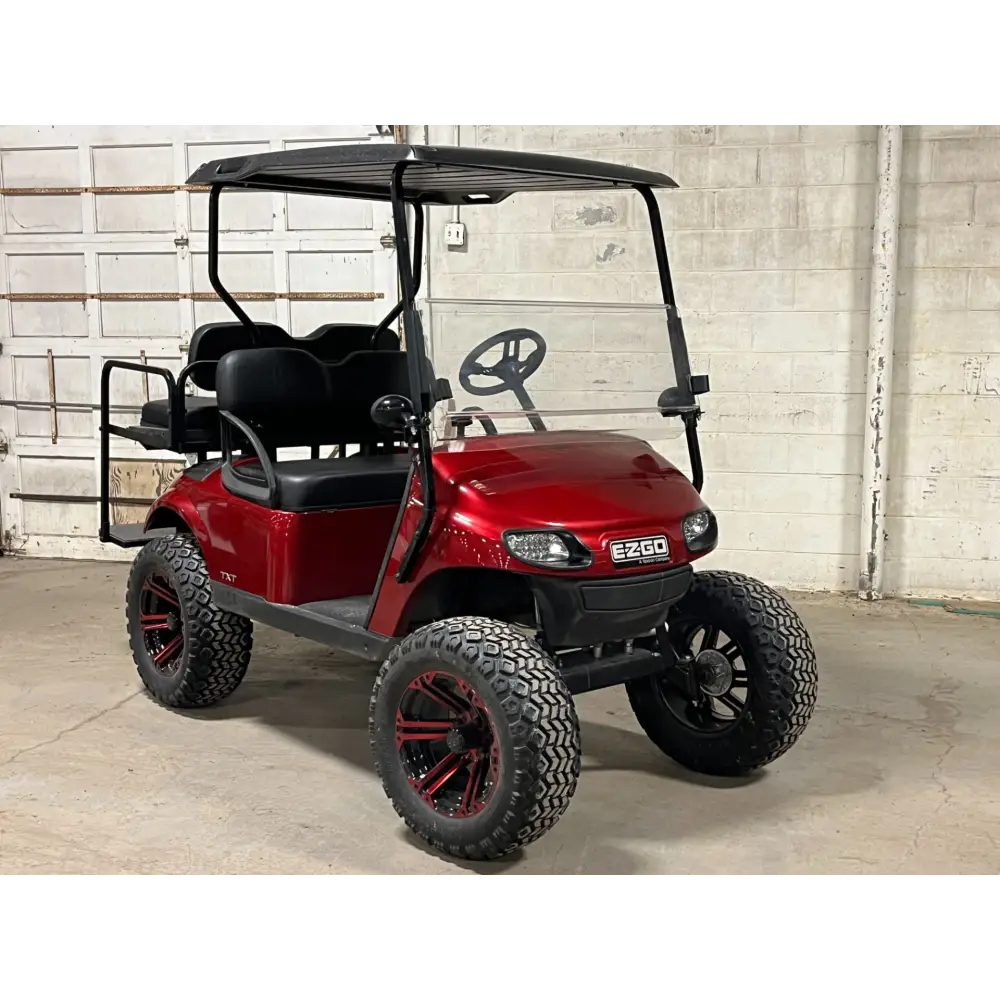

This 2016 E-z-go Txt Gas is the perfect golf cart for any terrain - built with the highest quality and loaded with features. It has a robust 416cc engine, a 12.7 hp rating, a 2,500 lbs towing capacity and up to 14.1 mph speed. Experience smooth and comfortable rides, no matter the terrain.
FEATURES
FEATURES
- Greater dash storage
- Taller, wider cup holders
- Easy access ball holders
- Forward-neutral-reverse switch for simplified operation

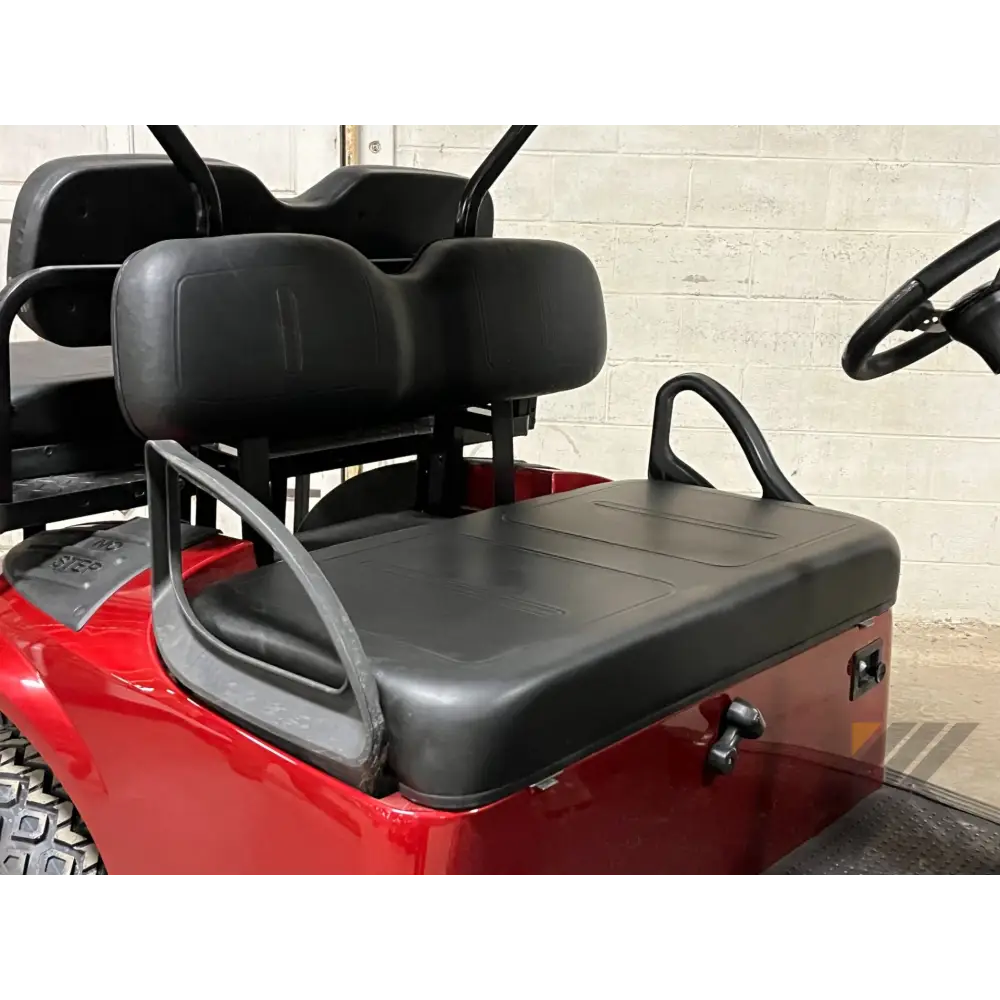

- Redesigned, more comfortable seats
- Stronger hip restraints
- Oversized bagwell
- Sweater basket
SPECIFICATIONS
GENERAL INFORMATION
Manufacturer
E-Z-GO
Model Year
2016
Model
TXT Gas
Model Code
TXTGAS
Color
Inferno Red
DRIVETRAIN
Transmission
Continuously variable transmission (CVT)
ELECTRICAL
Battery
(1) 12V maintenance free
ENGINE
Engine
4-cycle, low-emissions, single-cylinder OHV with hemispheric combustion chamber
Horsepower
13.5 hp (10 kW)
Displacement
24.5 ci (401cc)
Fuel Capacity
5.3 gal. (20 l)
Lubrication
Pressurized oil system
Fuel Type
Gasoline
MEASUREMENTS
Length
93 in. (236 cm)
Height
With Canopy - 67.5 in. (171 cm)
Without Canopy - 46.5 in. (118 cm)
Width
47 in. (119 cm)
Weight
Dry - 760 lbs. (250 kg)
Curb - 780 lbs. (360 kg)
Wheelbase
66 in. (168 cm)
Ground Clearance
4.25 in. (10.8 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drum
Parking - Self-compensating single point engagement
Suspension
Front - Leaf springs with hydraulic shock absorbers
Rear - Leaf springs
Tires

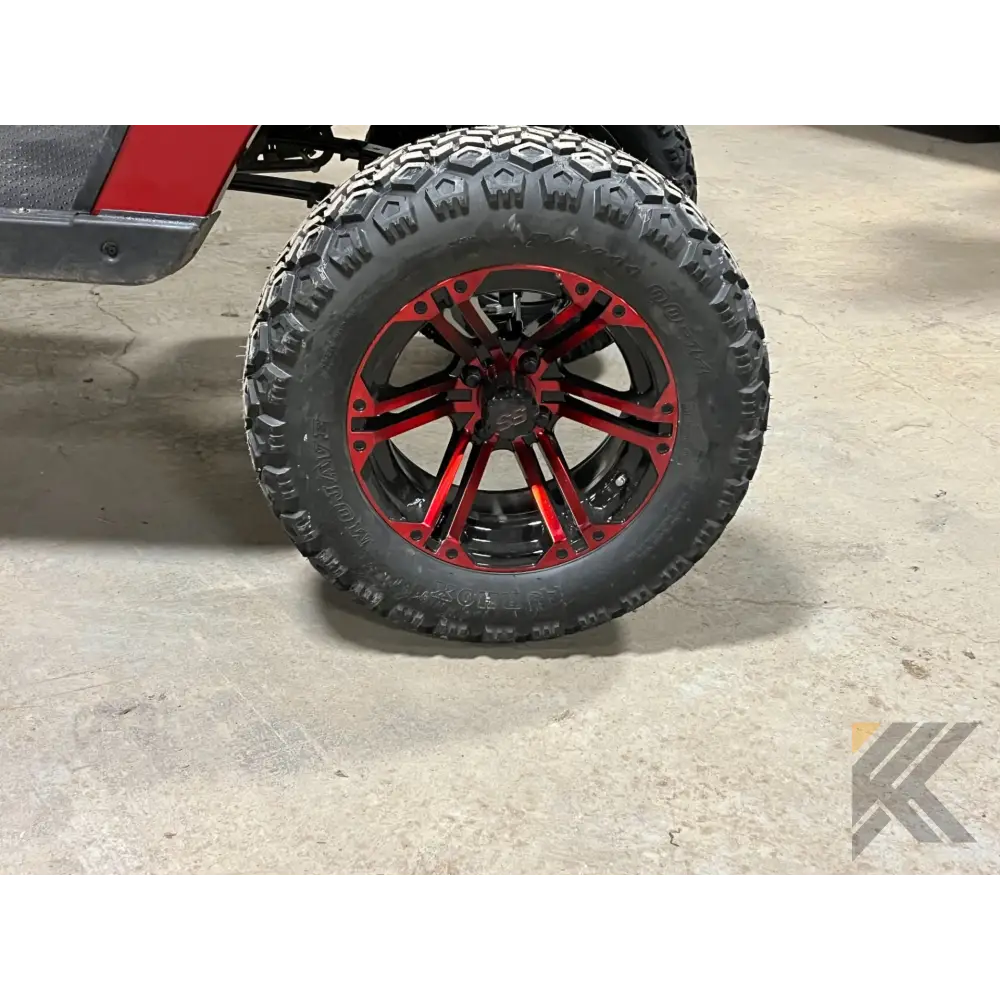

18x8.50-8 (4-ply rated)
Seating
2 person
Load Capacity
800 lbs. (360 kg)
Towing Capacity
3 E-Z-GO golf cars with approved permanent tow bar
Turning Radius
19 ft. (5.8 m)
Steering
Self-compensating rack and pinion
Speed
13 mph (21 km/h)
