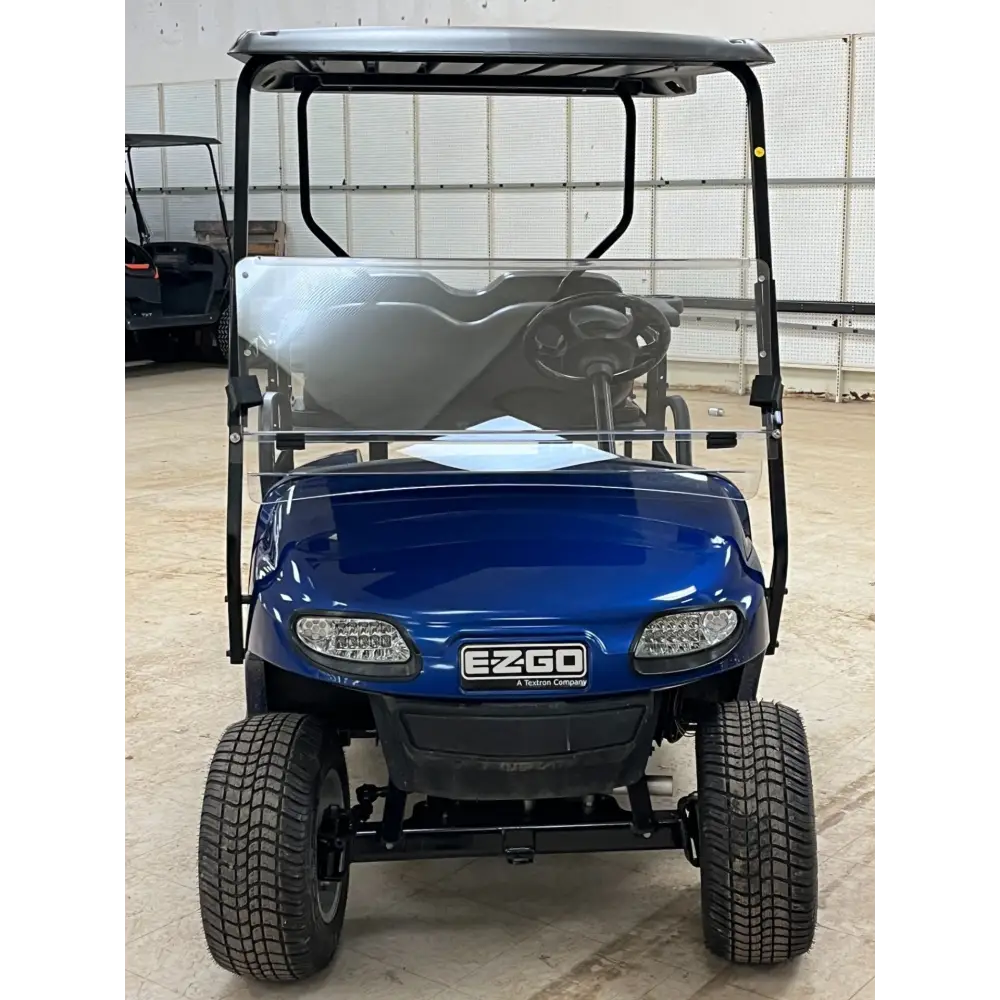

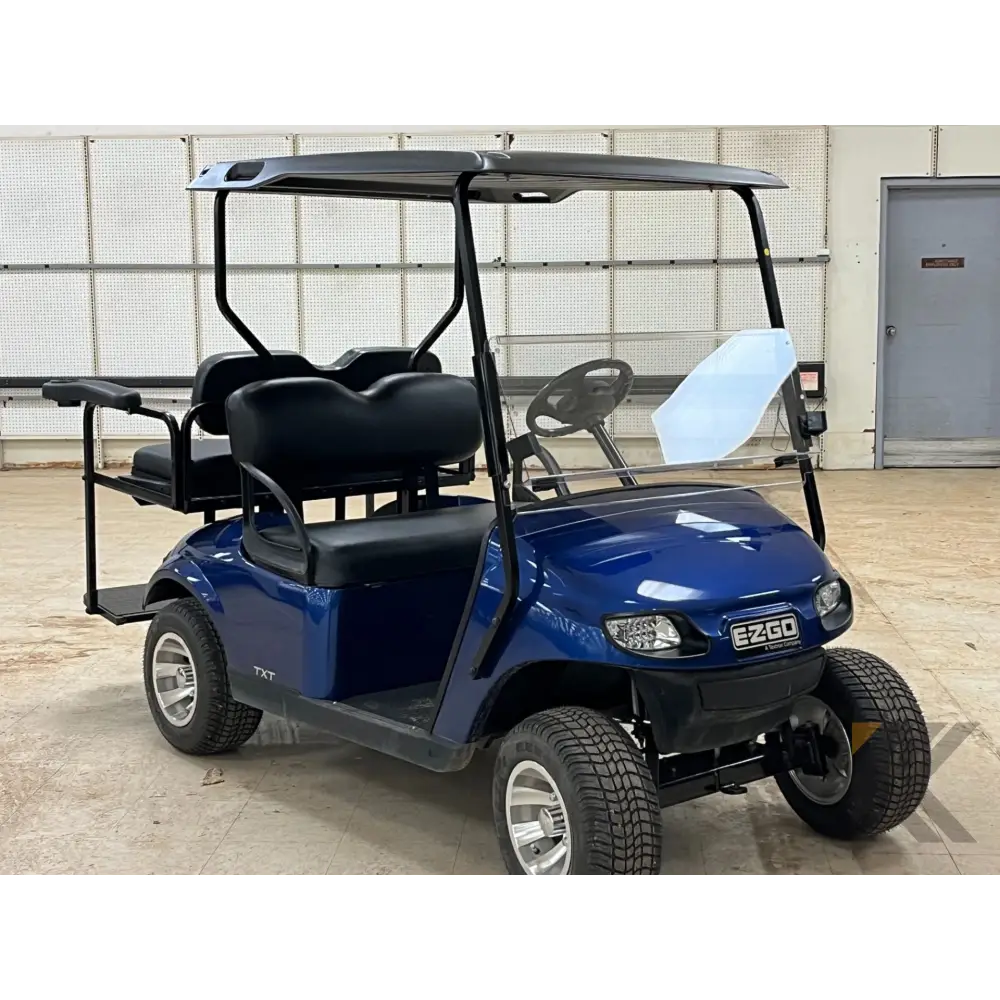

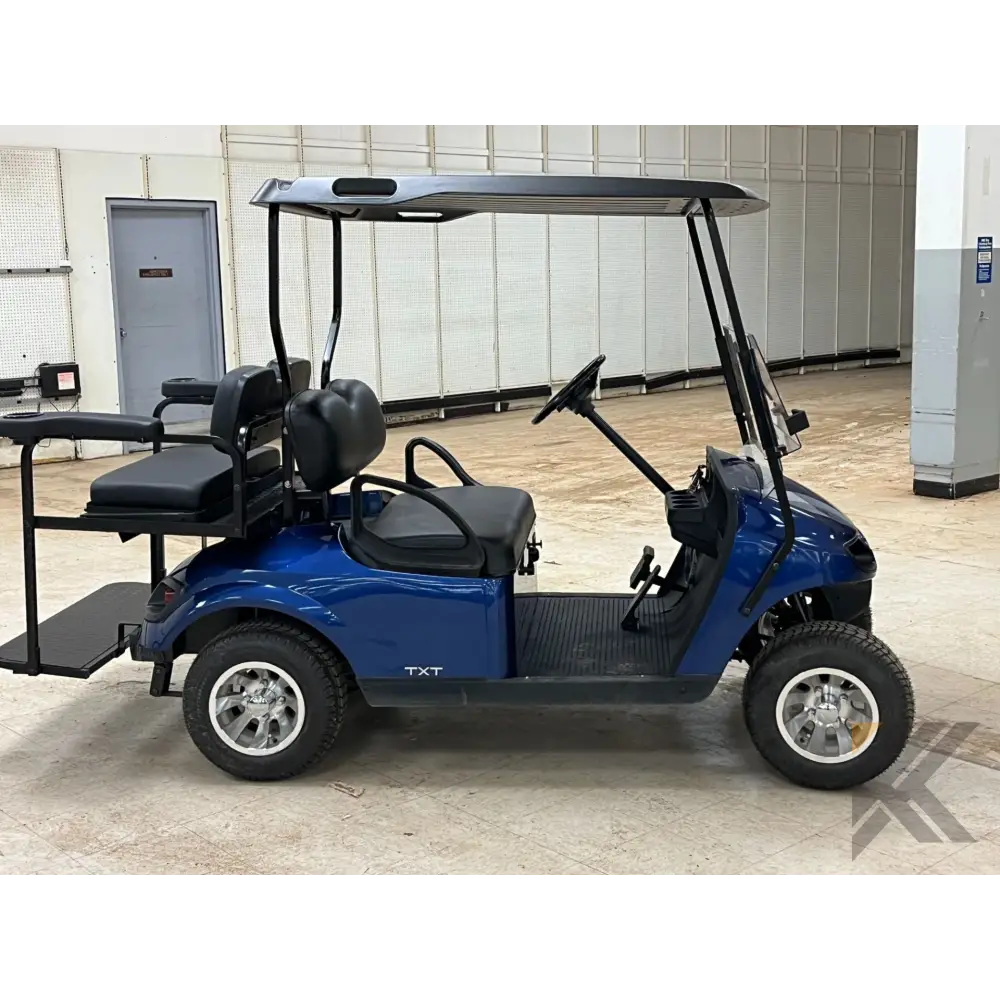

The 2016 E-z-go Txt Gas is an excellent golf cart choice for those looking for reliable performance. This gas-powered cart is equipped with a comfortable interior and a powerful 13.5hp engine that ensures a smooth ride. It also has a range of features such as headlight/tail lights, cup holders, and turn signal lights for added safety. Enjoy!
FEATURES
FEATURES
- Greater dash storage
- Taller, wider cup holders
- Easy access ball holders
- Forward-neutral-reverse switch for simplified operation

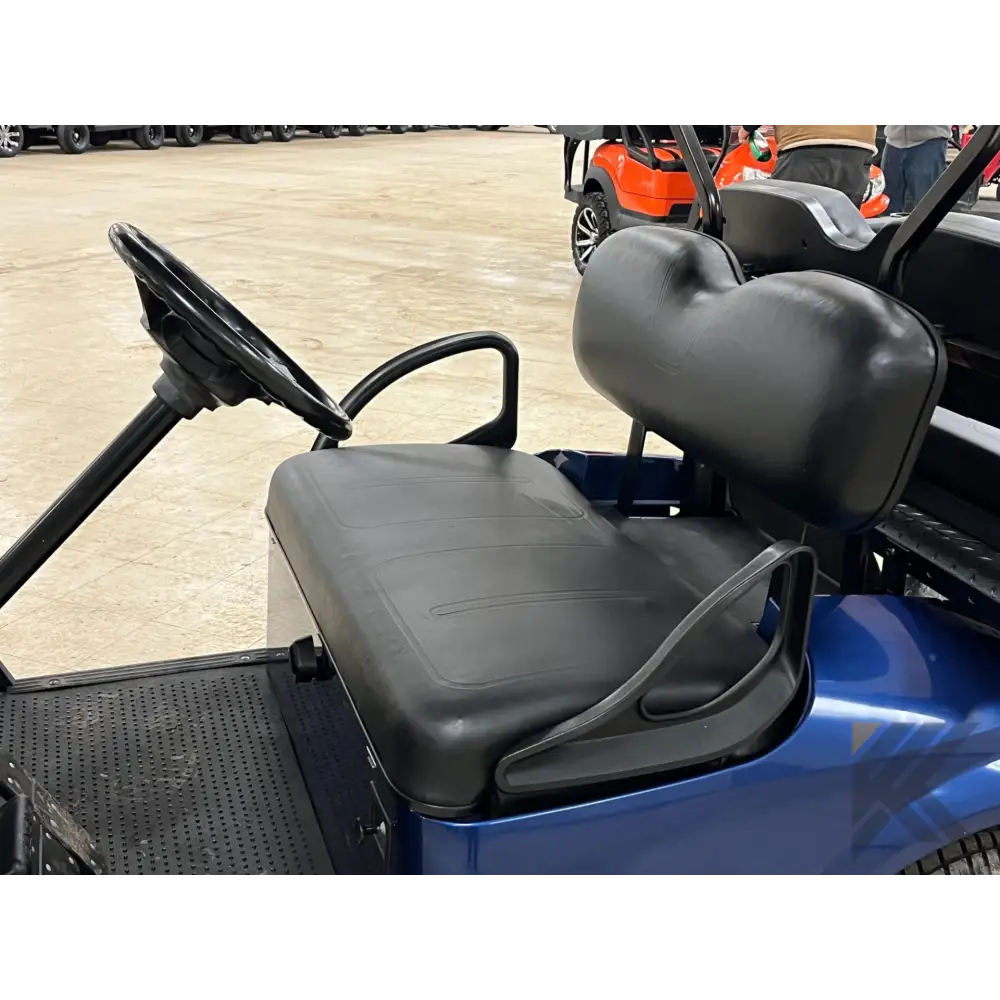

- Redesigned, more comfortable seats
- Stronger hip restraints
- Oversized bagwell
- Sweater basket
SPECIFICATIONS
GENERAL INFORMATION
Manufacturer
E-Z-GO
Model Year
2016
Model
TXT Gas
Model Code
TXTGAS
Color
Electric Blue
DRIVETRAIN
Transmission
Continuously variable transmission (CVT)
ELECTRICAL
Battery
(1) 12V maintenance free
ENGINE
Engine
4-cycle, low-emissions, single-cylinder OHV with hemispheric combustion chamber
Horsepower
13.5 hp (10 kW)
Displacement
24.5 ci (401cc)
Fuel Capacity
5.3 gal. (20 l)
Lubrication
Pressurized oil system
Fuel Type
Gasoline
MEASUREMENTS
Length
93 in. (236 cm)
Height
With Canopy - 67.5 in. (171 cm)
Without Canopy - 46.5 in. (118 cm)
Width
47 in. (119 cm)
Weight
Dry - 760 lbs. (250 kg)
Curb - 780 lbs. (360 kg)
Wheelbase
66 in. (168 cm)
Ground Clearance
4.25 in. (10.8 cm)
OPERATIONAL
Brakes
Service - Rear wheel mechanical self-adjusting drum
Parking - Self-compensating single point engagement
Suspension
Front - Leaf springs with hydraulic shock absorbers
Rear - Leaf springs

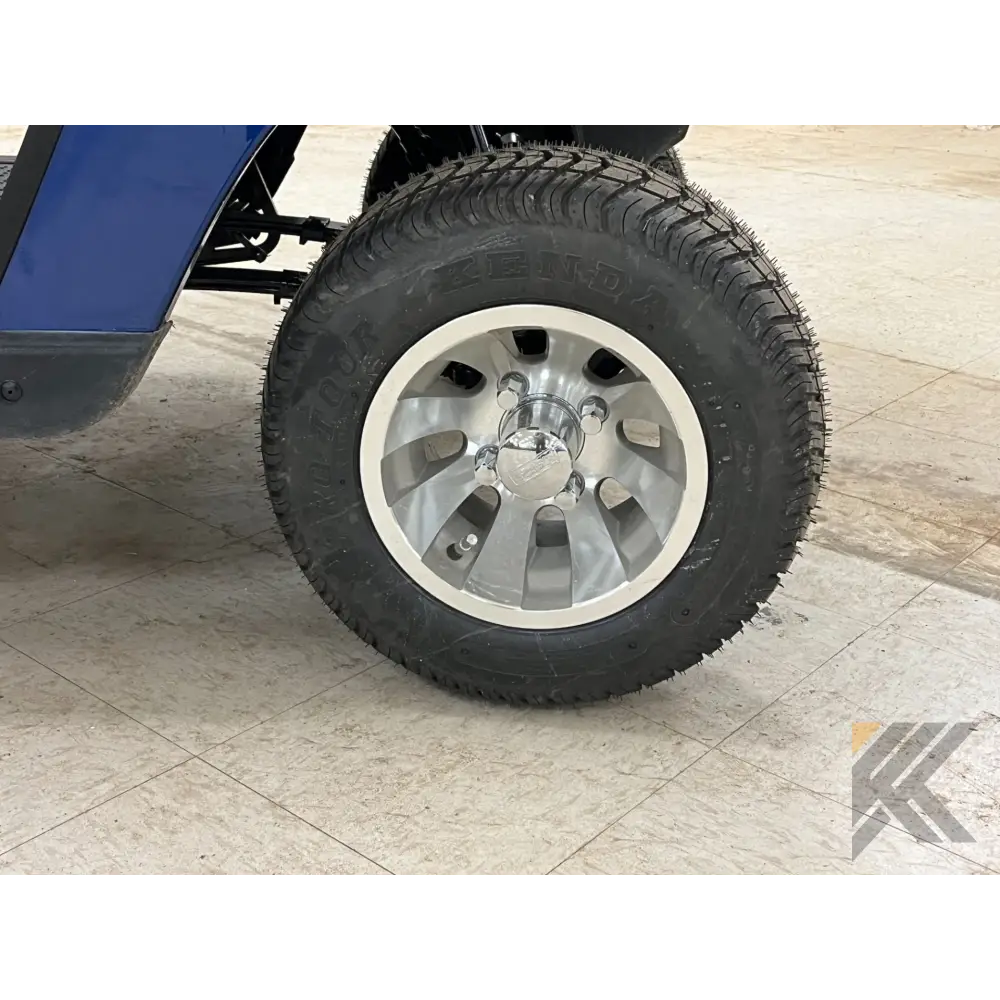

Tires
18x8.50-8 (4-ply rated)
Seating
2 person
Load Capacity
800 lbs. (360 kg)
Towing Capacity
3 E-Z-GO golf cars with approved permanent tow bar
Turning Radius
19 ft. (5.8 m)
Steering
Self-compensating rack and pinion
Speed
13 mph (21 km/h)
