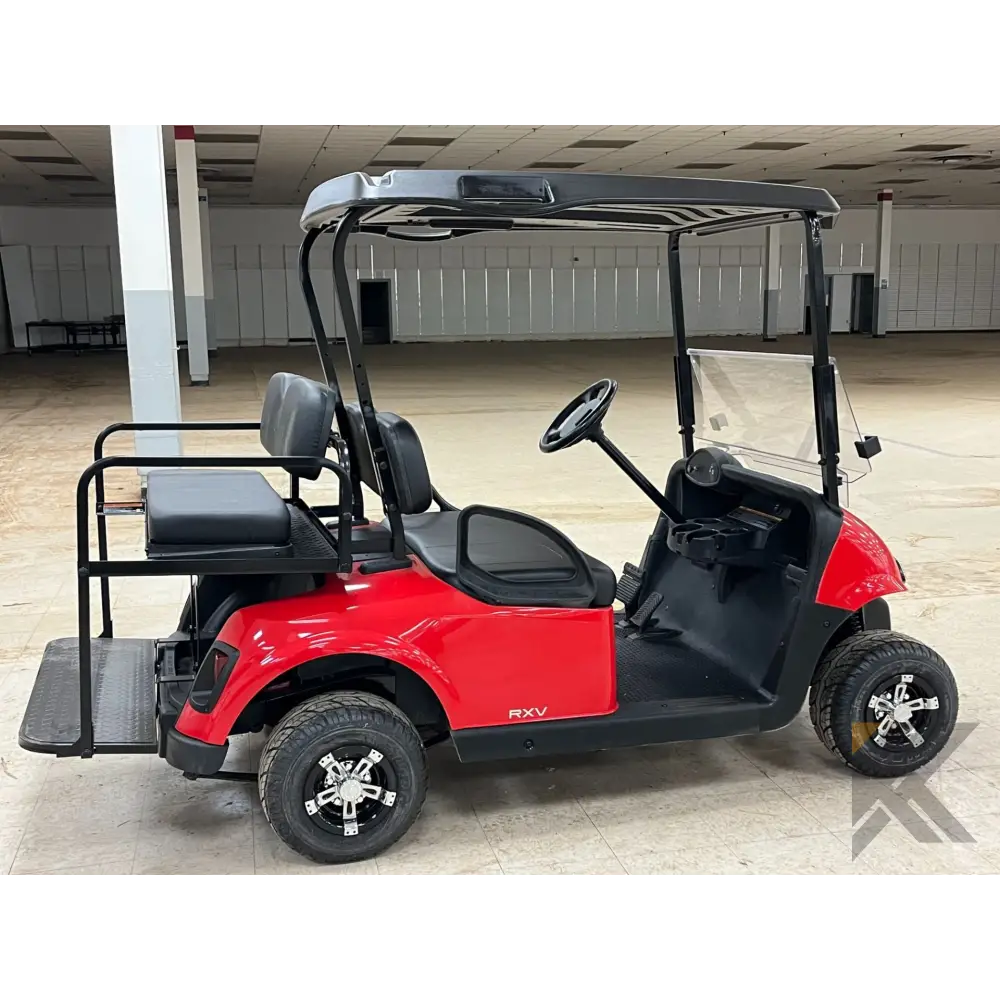

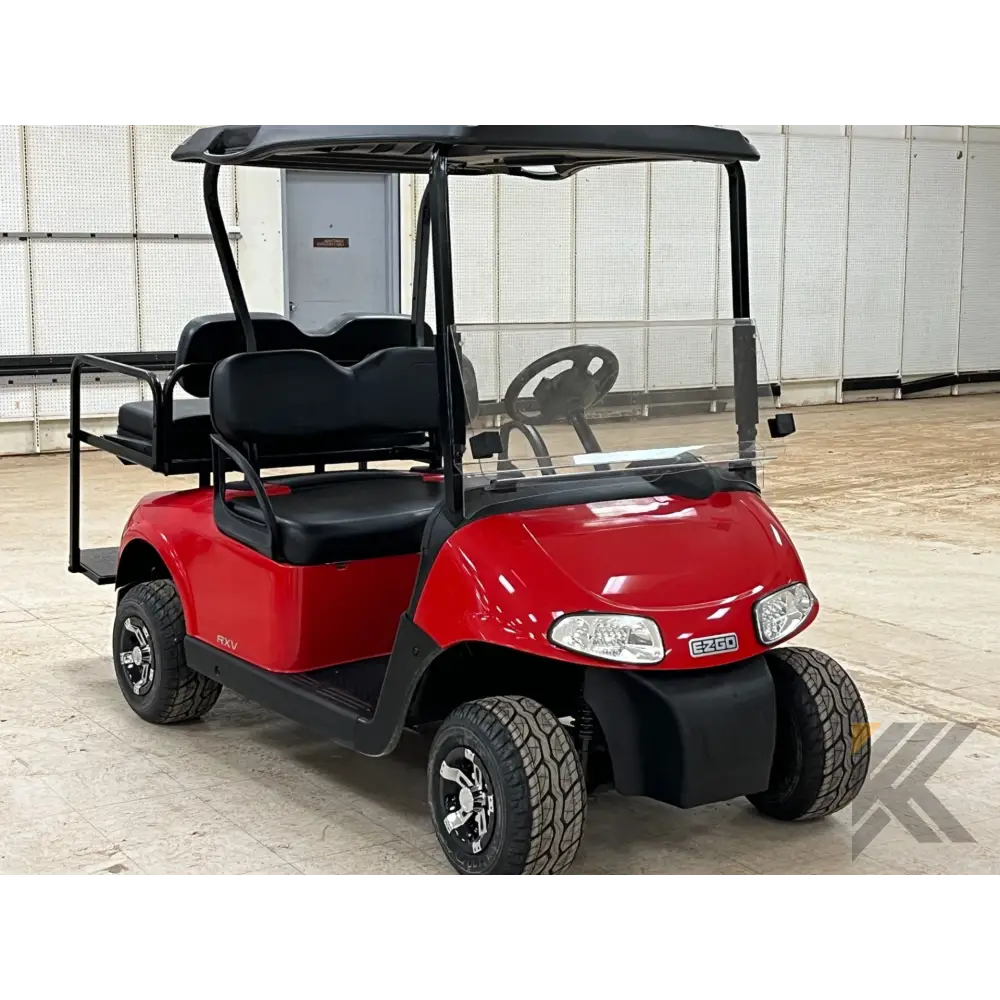

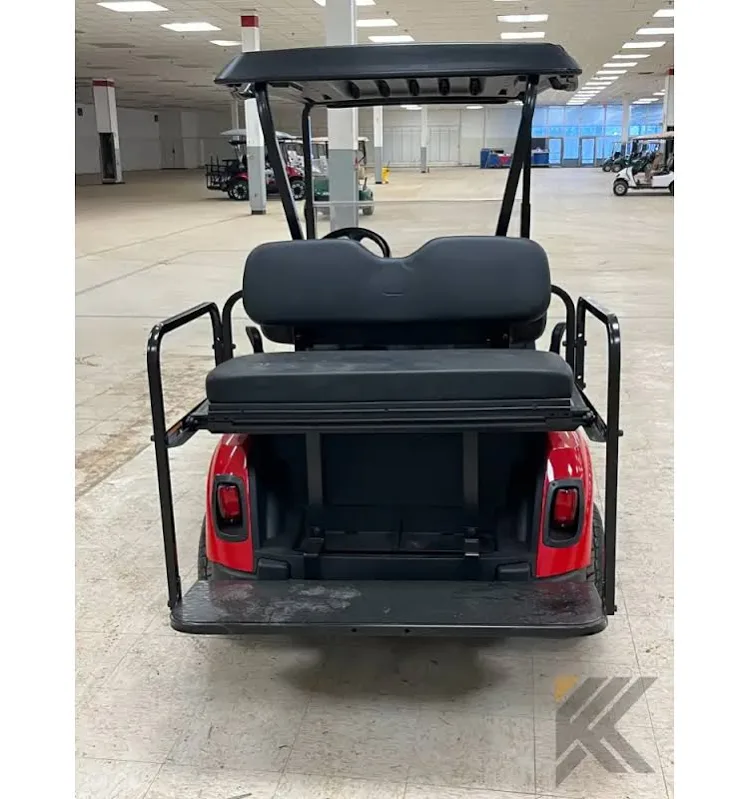

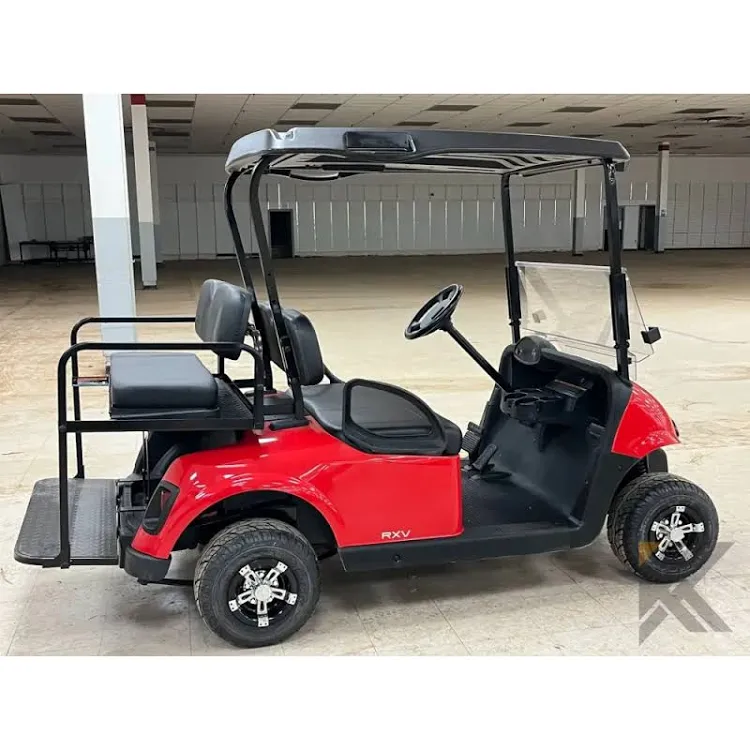

Take your experience to the next level with the 2014 E-z-go Rxv Gas. This advanced gas edition offers unmatched power and performance with its high-efficiency engine and superior frame design. Enjoy an upgraded driving experience with enhanced stability and control for smoother handling around tough courses.
SPECIFICATIONS
GENERAL INFORMATION
Manufacturer
E-Z-GO
Model Year
2014
Model
RXV Gas
Color
Flame Red
DRIVETRAIN
Transmission
Automatic, CVT
ELECTRICAL
Battery
(1) 12V maintenance-free
ENGINE
Engine
4-cycle, low-emission, single-cylinder, OHV with hemispheric combustion chamber, air-cooled
Horsepower
13.5 hp (10 kW)
Displacement
24.5 ci (401cc)
Fuel Capacity
6.2 gal. (23.5 l)
Lubrication
Pressurized oil system
Fuel Type
Gasoline
MEASUREMENTS
Length
94.5 in. (240 cm)
Height
With Canopy: 68.5 in. (174 cm) Without Canopy: 45.7 in. (116 cm)
Width
47 in. (119 cm)
Weight
697 lbs. (316 kg) Curb: 747 lbs. (339 kg)
Wheelbase
65.7 in. (167 cm)
Ground Clearance
3.3 in. (8 cm)
OPERATIONAL
Brakes
Service: Rear wheel mechanical self-adjusting drums Parking: Self-compensating, single point engagement
Suspension
Front: Independent A-arm coil over shock Rear: Mono-leaf spring

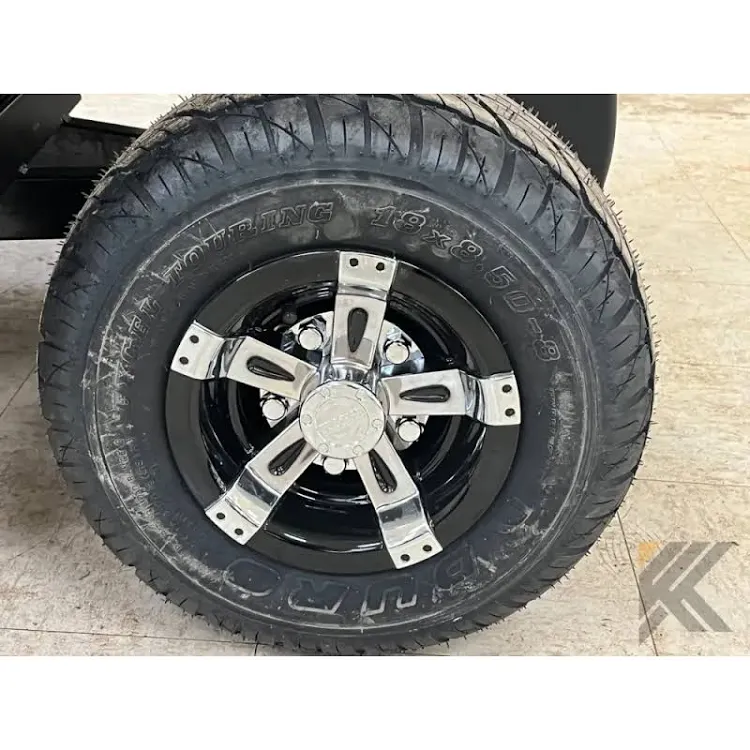

Tires
Turf 18 x 8.50-8 (4-ply rated)

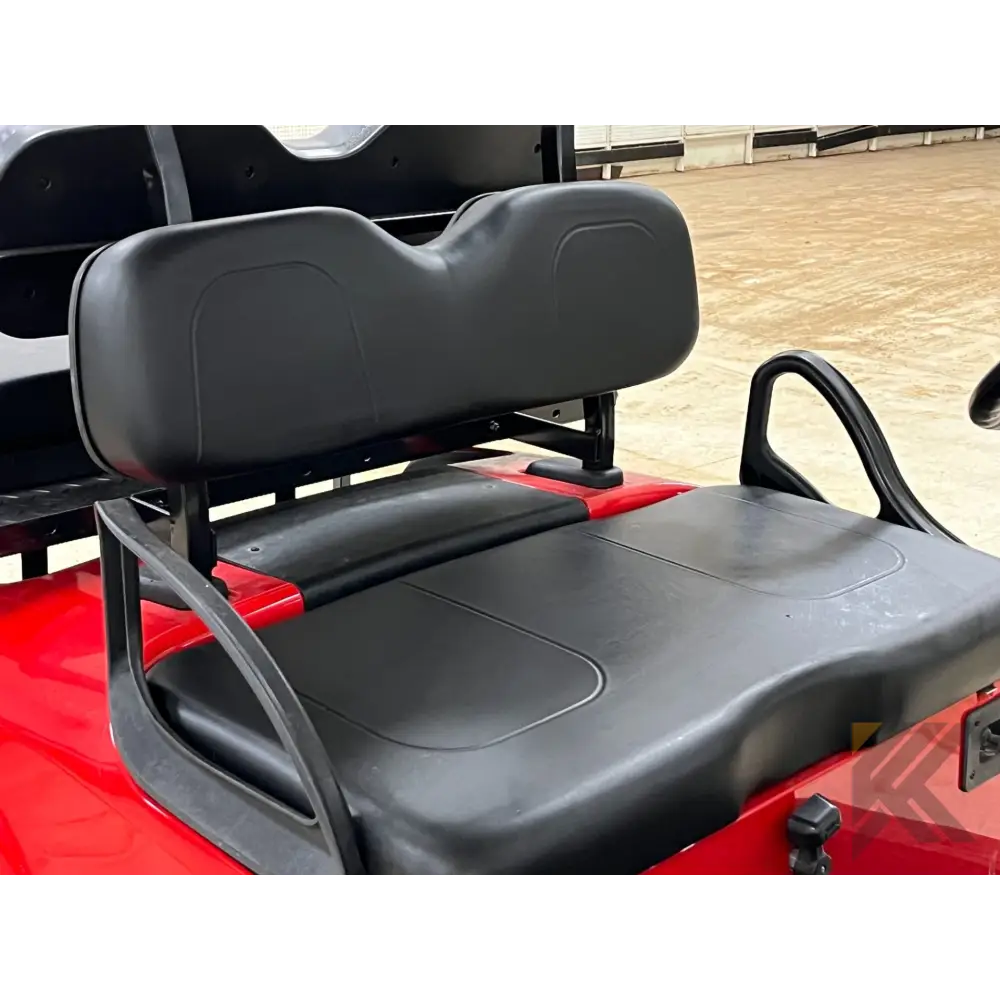

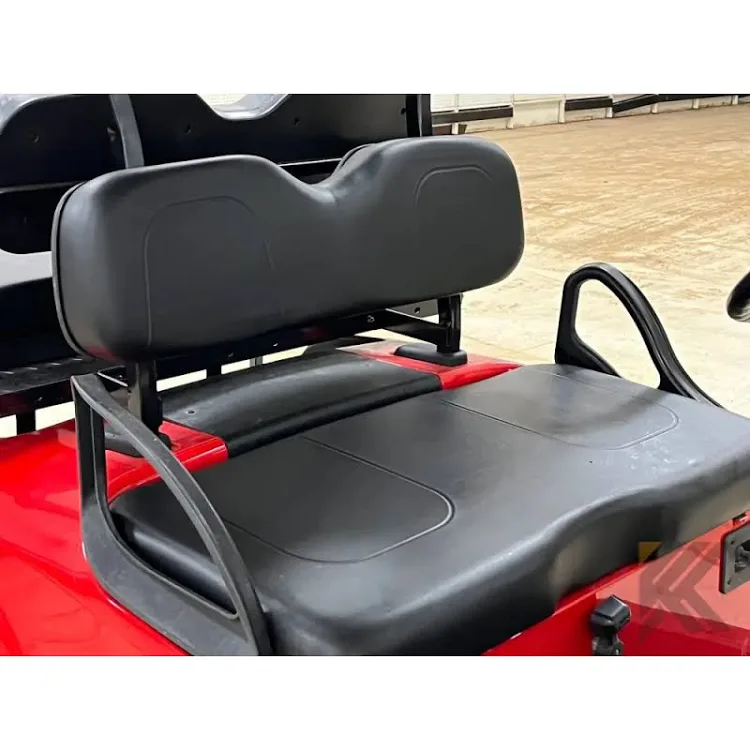

Seating
2 person
Load Capacity
800 lbs. (360 kg)
Towing Capacity
3 E-Z-GO golf cars with approved tow bars
Turning Radius
19 ft. (5.8 m)
Steering
Double-ended rack and pinion
Speed
14 mph (23 km/h)
